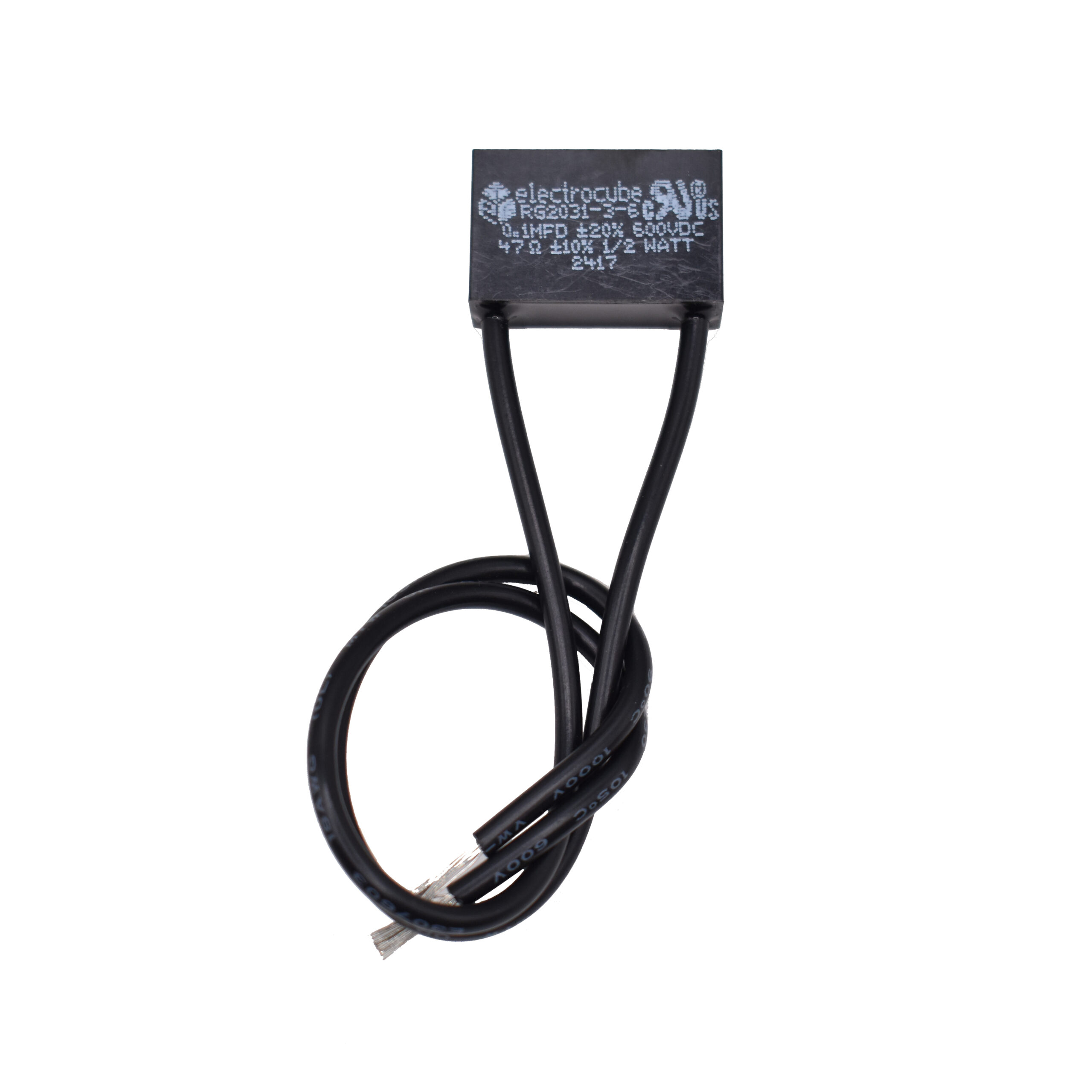

RG2031-3-6

$20.36

Description：FILTER RC 47OHM/0.1UF TH
Series：-
Mfr：Electrocube
Package：Bulk

SKU:3d1cd7b65545 Category: EMI/RFI Filters (LC, RC Networks) Brand: Electrocube

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER RC 47OHM/0.1UF TH
Series：-
Mfr：Electrocube
Package：Bulk
Type：Low Pass
Filter Order：1st
Technology：RC
Number of Channels：1
Center / Cutoff Frequency：-
Attenuation Value：-
Resistance - Channel (Ohms)：47
Values：R = 47Ohm, C = 0.1µF
ESD Protection：No
Operating Temperature：-40°C ~ 80°C
Applications：General Purpose
Voltage - Rated：200V
Mounting Type：Through Hole
Package / Case：Radial
Size / Dimension：1.000" L x 0.380" W (25.40mm x 9.65mm)
Height：0.660" (16.76mm)
Current：-
Grade：-
Qualification：-

Download product information

RG2031-3-6

Overview

The Electrocube RG2031-3-6 is a single-phase RC network designed for arc suppression applications. It features stranded wire leads and operates at a voltage rating of 600 VDC or 250 VAC. The component integrates a capacitance of 0.1 MFD with a resistance of 47 Ohms, rated for 1/2 Watt power dissipation.

Feature Summary

Integrated RC network configuration for effective arc suppression
Single-phase design with stranded wire leads for connection
Rated for 600 VDC and 250 VAC operation

Applications

Arc suppression in switchgear systems
Relay protection circuits
Industrial control panel components

Procurement Notes

Verify availability status as this component may be discontinued. Confirm exact specifications against official datasheets before integration. Ensure compatibility with existing circuit requirements regarding voltage ratings and physical lead configurations.

Selection Notes

Select this part for single-phase AC or DC circuits requiring arc suppression. Verify that the 47 Ohm resistance and 0.1 MFD capacitance values align with system transient suppression needs. Check voltage ratings to ensure suitability for 600 VDC or 250 VAC environments.

Part Context

This component belongs to the Electrocube RC Networks series, specifically designed for single-phase applications. It serves as a passive electronic component used primarily in industrial electrical systems to mitigate arcing across contacts.

Replacement Considerations

Cross-reference tools indicate parametrically similar parts are available. Verify substitute components match the 0.1 MFD capacitance, 47 Ohm resistance, and 600 VDC rating.
