RG2031-6-12

Overview

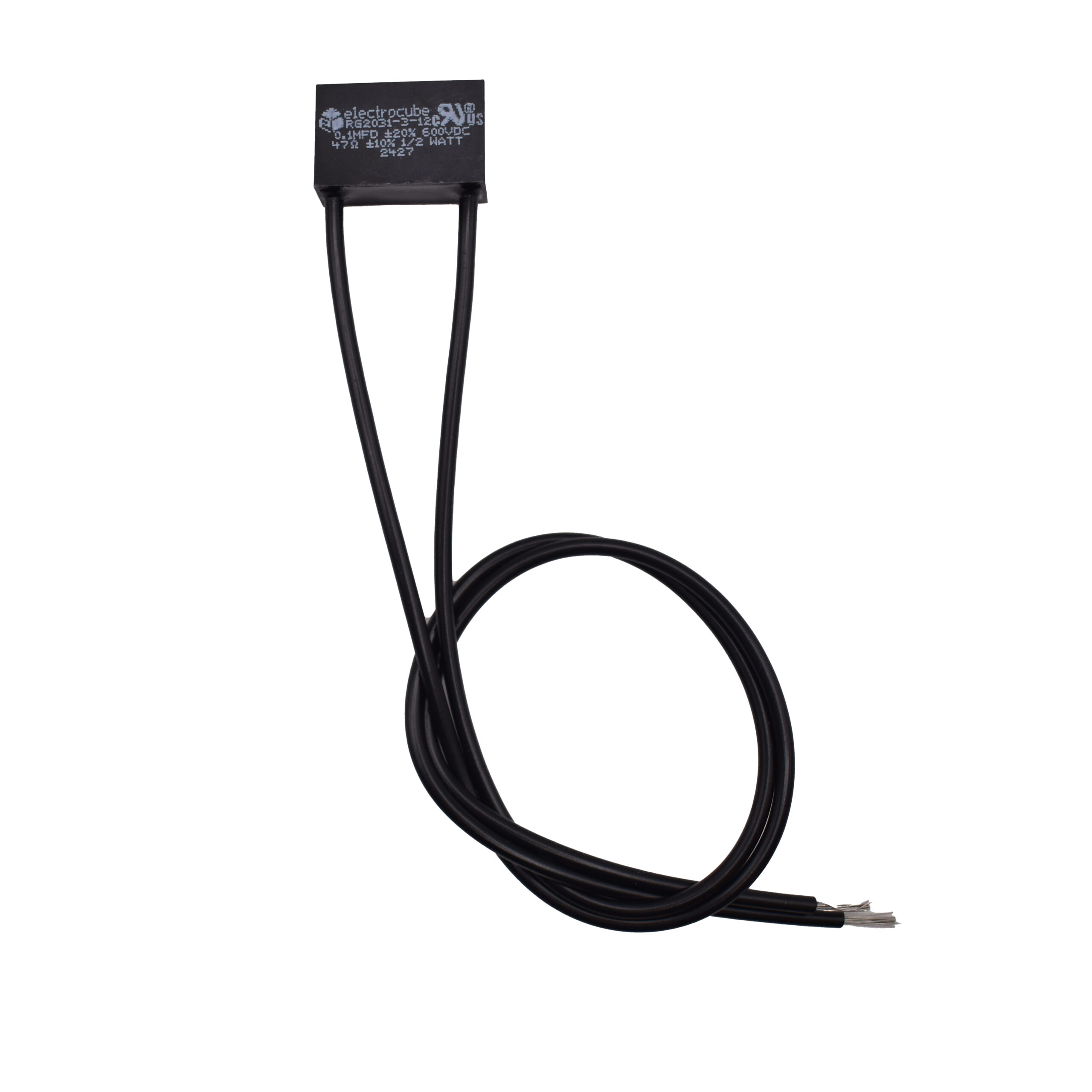

The Electrocube RG2031-6-12 is a single-phase RC network designed for electrical circuit filtering and suppression. It features a capacitance of 0.1 microfarads (MFD) and a resistance of 100 ohms. The component is rated for 600 volts DC and 250 volts AC, with a power dissipation capacity of 0.5 watts. It utilizes stranded wire leads for connection and is constructed as a radial network cube.

Feature Summary

• Single-phase RC network configuration
• Stranded wire lead termination
• Radial network cube construction

Applications

• Electrical circuit filtering
• Signal suppression in single-phase systems
• Noise reduction in electronic assemblies

Procurement Notes

Verify the specific voltage rating requirements against the application's operational limits, noting the dual AC/DC ratings. Confirm that the 0.5-watt power dissipation is sufficient for the expected load. Ensure the stranded wire lead style matches the assembly's connection method. Cross-reference part numbers to confirm compatibility with existing designs.

Selection Notes

Select this component when a single-phase RC filter is required for noise suppression. The 0.1 MFD capacitance and 100 Ohm resistance provide specific filtering characteristics suitable for general-purpose applications. Consider the physical size of the radial network cube and the length of the stranded wire leads during PCB or chassis layout planning.

Part Context

This component belongs to the Electrocube RC Networks series, which offers various combinations of resistors and capacitors for transient suppression and filtering. The RG2031 series typically includes single-phase configurations with standardized values for common industrial and commercial electronic applications.

Replacement Considerations

Substitutes must match the 0.1 MFD capacitance, 100 Ohm resistance, and appropriate voltage ratings. Verify that alternative components support single-phase operation and have compatible lead styles.
