RG2031-6-6

Overview

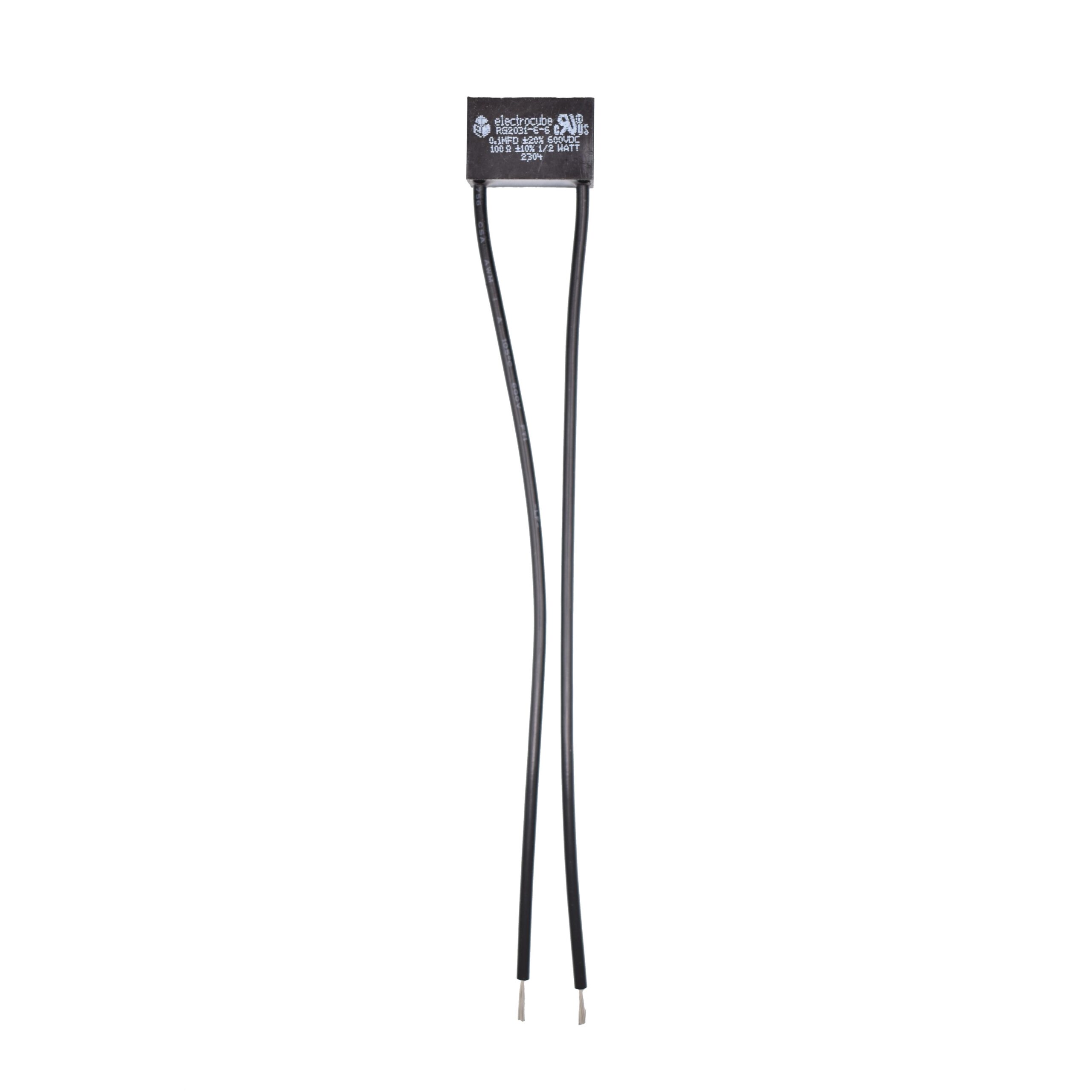

The Electrocube RG2031-6-6 is a single-phase RC network surge suppressor designed for electrical system protection. It features a capacitance of 0.1 MFD and a resistance of 100 Ohms. The component is rated for 250VAC and 600VDC, with a power rating of 1/2 watt. It utilizes stranded wire leads, specifically 6-inch long 18AWG MTW wires, and operates within a temperature range of -40 to +80 degrees Celsius.

Feature Summary

• Single-phase RC network configuration for surge suppression
• Stranded wire leads for secure connection
• Wide operating temperature range

Applications

• Surge protection in electrical systems
• Voltage spike suppression
• Industrial electronic circuit protection

Procurement Notes

Verify the specific lead length and wire gauge requirements against your assembly specifications. Confirm that the 100 Ohm resistance and 0.1 MFD capacitance values align with your circuit design needs. Ensure the voltage ratings are sufficient for your application's peak voltages. Check for any specific mounting or clearance requirements due to the leaded construction.

Selection Notes

Select this component when a discrete single-phase RC snubber is required for transient voltage suppression. Consider the 1/2 watt power rating and temperature limits for thermal management. The stranded wire leads offer flexibility but require adequate spacing. Verify compatibility with existing PCB or chassis mounting constraints before finalizing the selection.

Part Context

This part belongs to the Electrocube RG2031 series of RC networks. These components are typically used in industrial and commercial applications where reliable surge protection is critical. The series offers various configurations to suit different voltage and current requirements.

Replacement Considerations

Direct substitutes may include other single-phase RC networks with identical 0.1 MFD capacitance, 100 Ohm resistance, and similar voltage ratings. Ensure any replacement matches the lead type and length if mechanical fit is critical. Verify thermal performance characteristics match the original specification.
