RG2031-6

Overview

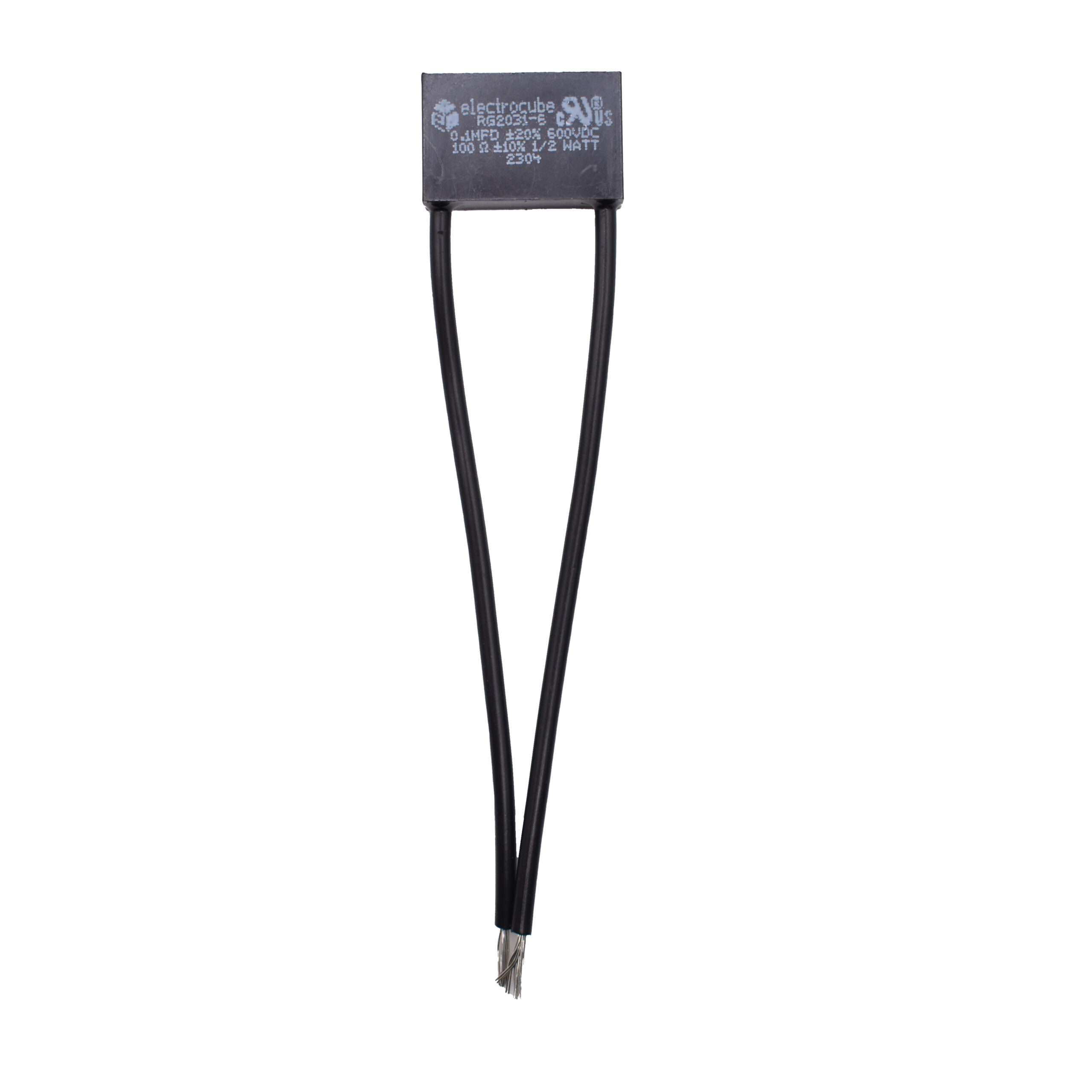

The Electrocube RG2031-6 is a single-phase RC EMI filter network designed for low-pass signal conditioning. It integrates a 100 Ohm resistor and a 0.1 µF capacitor within a robust construction rated for 1/2 watt power dissipation. The component supports operation up to 600 VDC or 250 VAC, with a functional temperature range spanning from -40°C to +80°C. This radial-leaded assembly provides effective attenuation of high-frequency noise in electrical circuits.

Feature Summary

• Single-phase RC network configuration for EMI suppression
• Integrated 100 Ohm resistance and 0.1 µF capacitance
• High voltage rating capability for DC and AC applications
• Stranded wire leads for secure mechanical mounting

Applications

• Power supply input filtering
• Signal line noise reduction
• Industrial control circuit protection

Procurement Notes

Verify the specific suffix designation (e.g., -6-6) against procurement requirements, as lead length and wire gauge specifications may vary between variants. Confirm that the 600 VDC / 250 VAC ratings align with the target circuit's maximum operating voltages. Ensure the -40°C to +80°C thermal range meets environmental constraints. Cross-reference the 1/2 watt power rating with expected load conditions to prevent thermal overload during continuous operation.

Selection Notes

Select this component when a fixed 100 Ohm / 0.1 µF time constant is required for first-order low-pass filtering. The single-phase design suits applications where three-phase complexity is unnecessary. Consider the radial lead format for through-hole PCB mounting or point-to-point wiring. Evaluate the 600 VDC insulation rating against peak transient voltages present in the system to ensure dielectric integrity under stress conditions.

Part Context

This part belongs to the Electrocube RG2031 series of single-phase RC networks. These components are engineered for general-purpose EMI/RFI suppression in electronic assemblies. The series offers various resistance and capacitance combinations tailored to different cutoff frequency requirements while maintaining consistent physical dimensions and lead configurations for standardized integration.

Replacement Considerations

Direct substitutes include other single-phase RC networks with identical 100 Ohm and 0.1 µF values. Verify that replacement parts match the 600 VDC voltage rating and 1/2 watt power dissipation limits. Ensure compatible lead styles and temperature ranges (-40°C to +80°C) are maintained for equivalent performance in existing layouts.
