RG2377-1

Overview

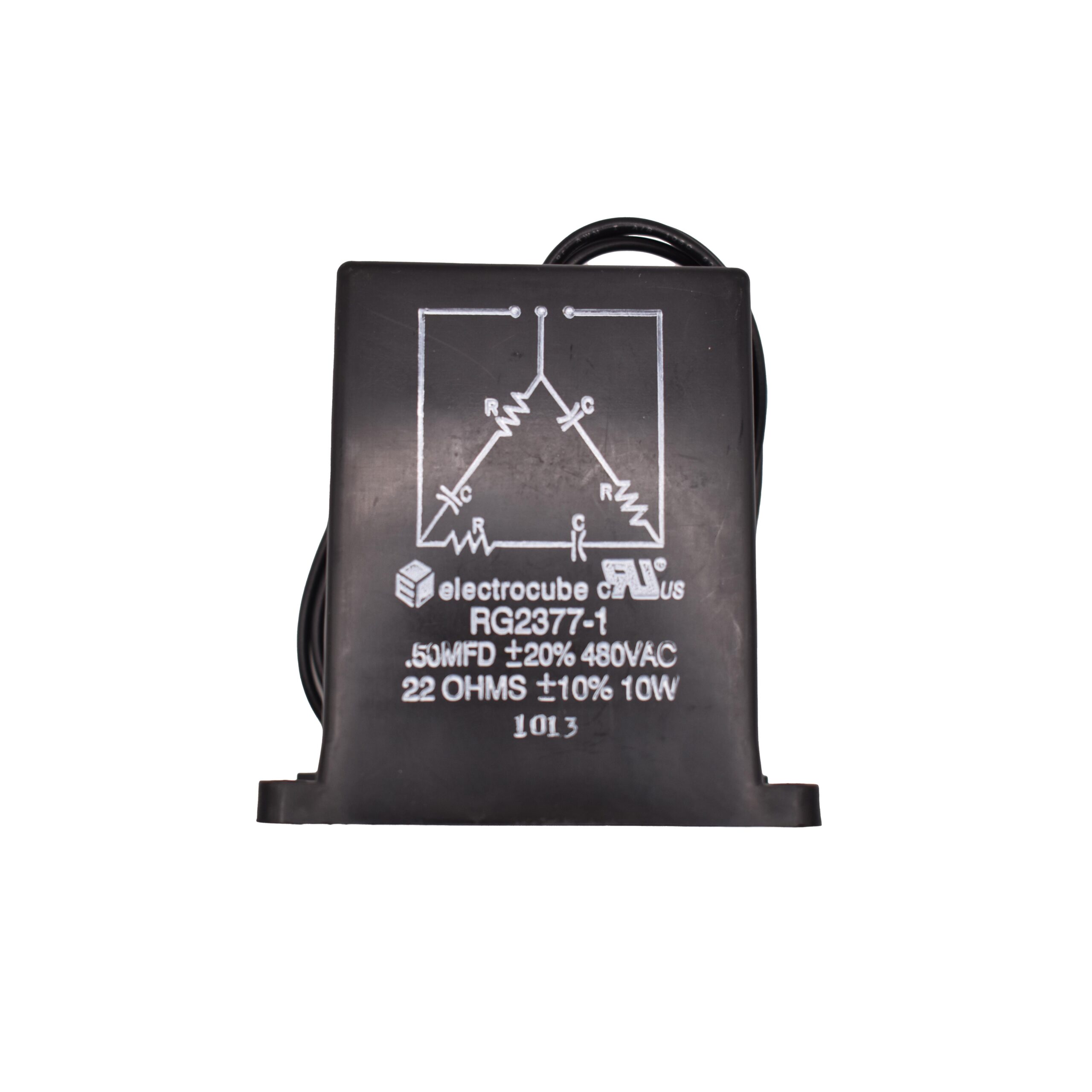

The Electrocube RG2377-1 is a three-phase RC EMI filter module designed for delta configuration applications. It integrates resistors and capacitors to provide third-order low-pass filtering for electromagnetic interference suppression in industrial power systems. The unit operates at a rated voltage of 480VAC and utilizes specific resistance and capacitance values to attenuate high-frequency noise across three channels.

Feature Summary

• Provides third-order low-pass filtering for effective EMI suppression
• Constructed with integrated resistor-capacitor networks for compact installation
• Designed for delta configuration in three-phase power circuits

Applications

• Industrial motor drive input filtering
• Three-phase power distribution noise reduction
• Sensitive electronic equipment protection against line disturbances

Procurement Notes

Verify the exact resistance and capacitance specifications required for your circuit design, as variations exist within the RG2377 series. Confirm that the delta configuration matches your system topology. Ensure the 480VAC rating aligns with your operating voltage. Check for RoHS compliance requirements if applicable to your manufacturing standards before finalizing procurement.

Selection Notes

Select this component when a pre-assembled three-phase RC network is preferred over discrete components to save board space and assembly time. Ensure the application requires delta configuration rather than wye. Verify that the thermal dissipation capabilities meet the continuous current demands of the load. Compare against other Electrocube models like RG2377-8 or RG2377-9 if different resistance values are needed.

Part Context

This part belongs to the Electrocube RG2377 series of RC EMI filters. These modules are engineered for robust performance in harsh electrical environments. The series offers various configurations and component values to suit different power ratings and noise profiles, providing a standardized solution for power quality improvement in industrial settings.

Replacement Considerations

Direct substitutes may include other Electrocube models such as RG2377-8 or RG2377-9, provided the resistance and capacitance values match the original design requirements. Cross-reference with generic three-phase RC filters only if custom assembly is feasible and meets all electrical and physical constraints.
