RG2377-8-24

Overview

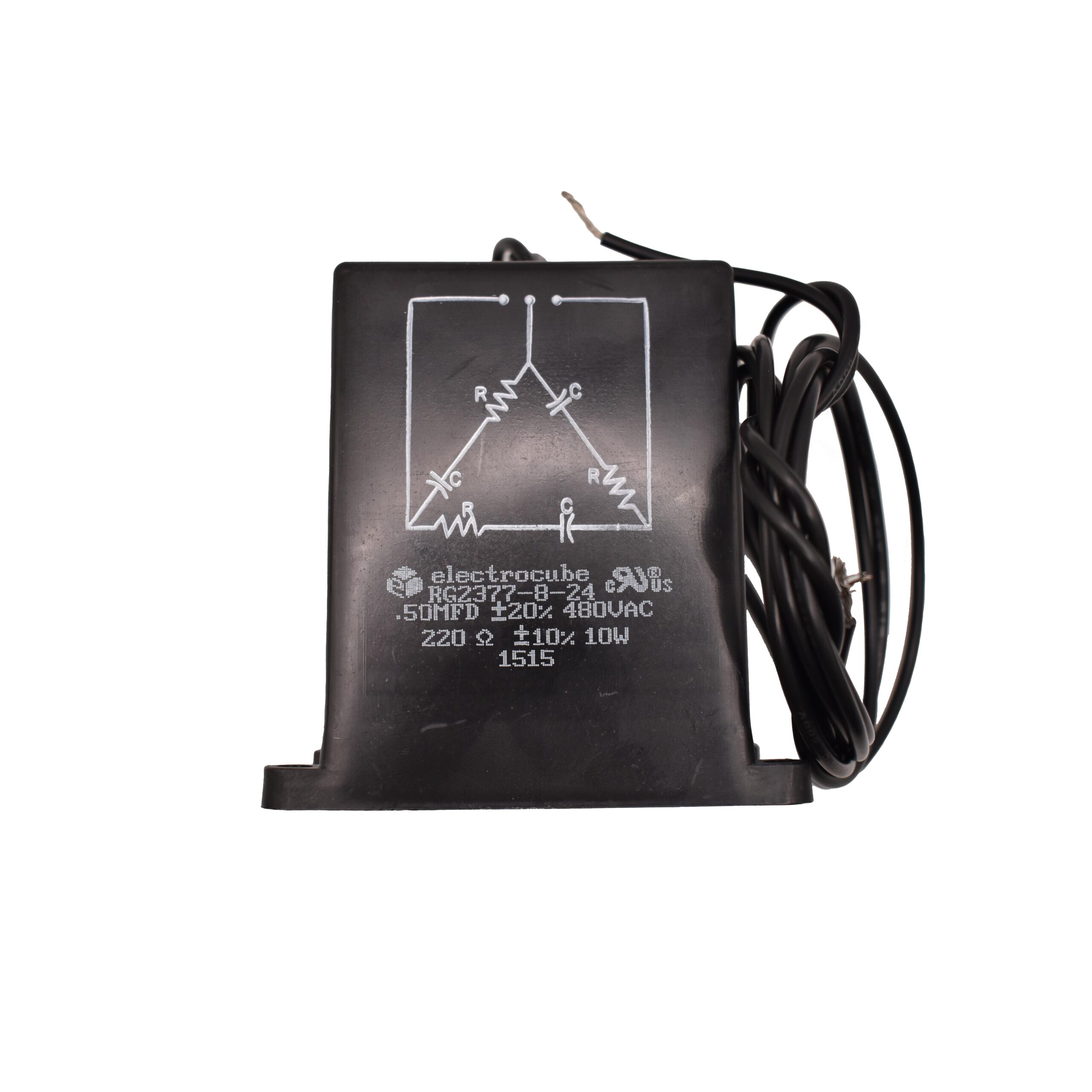

The Electrocube RG2377-8-24 is a chassis-mounted EMI filter designed for high-performance noise suppression. It integrates a 220 Ohm resistor and a 0.5 microfarad capacitor within a single compact enclosure. This configuration provides effective attenuation of electromagnetic interference across power lines. The unit features a robust metal chassis construction suitable for industrial environments. It supports direct panel mounting via integrated hardware, ensuring secure installation in equipment racks or control panels where space efficiency and reliable signal integrity are critical requirements.

Feature Summary

• Combines resistive and capacitive elements for comprehensive EMI filtering
• Chassis-mount design facilitates secure panel integration
• Compact form factor optimizes space utilization in dense assemblies

Applications

• Industrial control systems requiring noise reduction
• Power supply input stages for interference mitigation
• Electronic equipment chassis integration

Procurement Notes

Verify the specific manufacturer part number against official Electrocube documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with existing mounting holes and terminal configurations before procurement. Cross-reference datasheets for environmental operating limits to guarantee suitability for the intended application environment.

Selection Notes

Select this component when simultaneous resistance and capacitance filtering is required in a single package. Evaluate the 220 Ohm and 0.5 uF values against circuit impedance requirements. Confirm that the chassis mounting style aligns with the mechanical design constraints of the target enclosure or panel layout.

Part Context

This model belongs to Electrocube's range of passive electronic components focused on electromagnetic interference suppression. The company specializes in filters and connectors for demanding industrial and commercial applications. This specific unit represents a standardized solution for integrating basic RC filtering directly into equipment chassis without requiring separate discrete component placement.

Replacement Considerations

Consult official Electrocube substitution guides for verified equivalent models. Ensure any replacement maintains identical 220 Ohm and 0.5 uF specifications along with compatible chassis mounting dimensions.
