Product Detailed Parameters
- Description：FILTER RC 220OHM/0.5UF CHASSIS
- Series：-
- Mfr：Electrocube
- Package：Bulk
- Type：Low Pass
- Filter Order：3rd
- Technology：RC
- Number of Channels：3
- Center / Cutoff Frequency：-
- Attenuation Value：-
- Resistance - Channel (Ohms)：220
- Values：R = 220Ohm, C = 0.5µF
- ESD Protection：No
- Operating Temperature：-
- Applications：General Purpose
- Voltage - Rated：480V
- Mounting Type：Chassis Mount
- Package / Case：Module
- Size / Dimension：3.380" L x 2.125" W (85.85mm x 53.98mm)
- Height：3.500" (88.90mm)
- Current：-
- Grade：-
- Qualification：-
Download product information
Overview

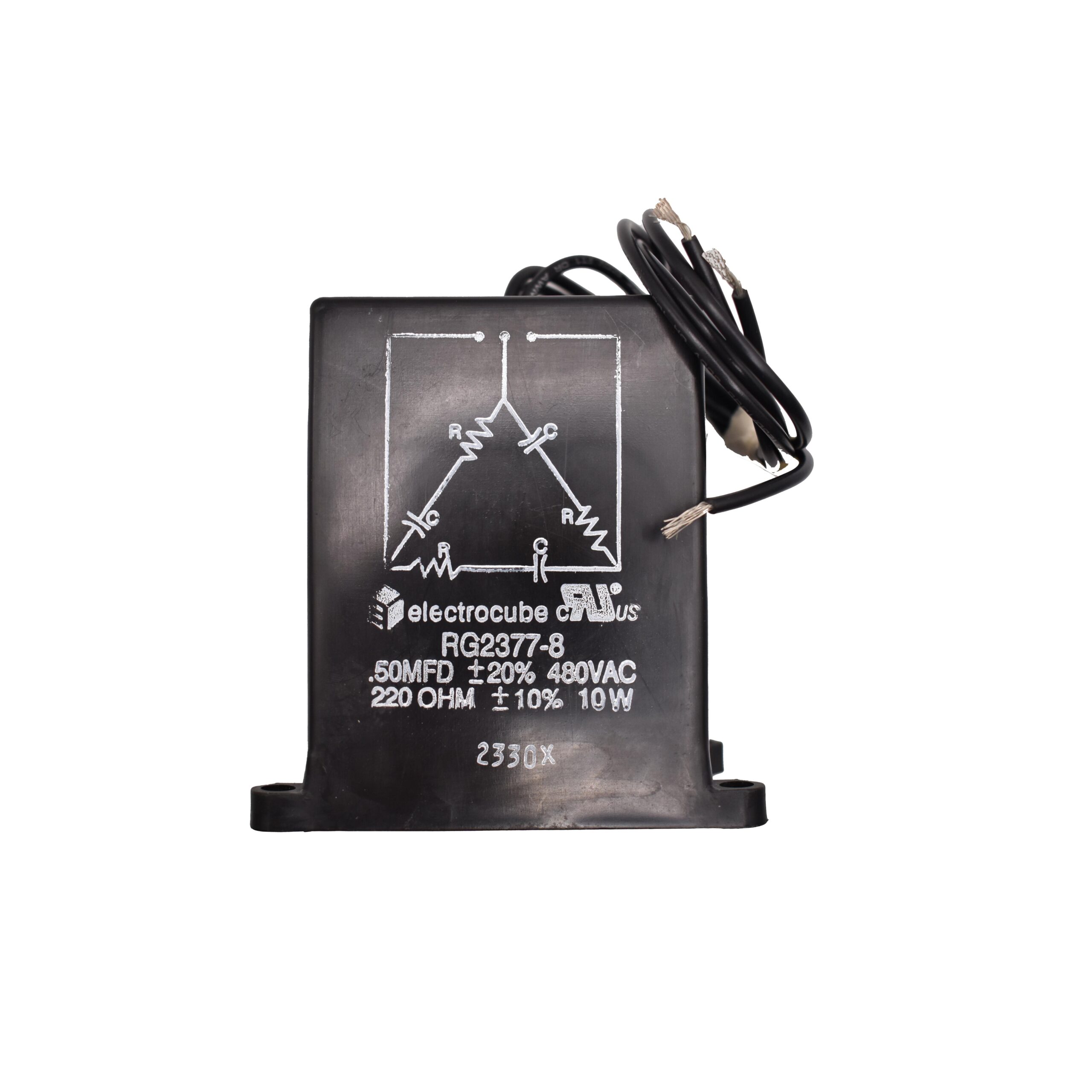

The Electrocube RG2377-8 is a third-order low-pass RC EMI filter module designed for three-phase applications. It features a delta configuration with integrated resistors and capacitors to suppress electromagnetic interference. Key electrical parameters include a resistance of 220 Ohms, capacitance of 0.5 µF, voltage rating of 480 VAC, and power dissipation of 10 W. This component serves as an effective solution for filtering noise in industrial power systems.
Feature Summary
- Third-order low-pass filtering architecture for enhanced noise suppression
- Delta configuration suitable for three-phase power line applications
- Integrated RC network design combining resistance and capacitance in a single module
Applications
- Three-phase power supply filtering
- Industrial equipment EMI suppression
- Contact arc suppression in motor control circuits
Procurement Notes
Verify the specific part number suffix against official Electrocube documentation to ensure correct voltage and configuration ratings. Confirm that the 480 VAC rating aligns with your system requirements. Check datasheets for mounting specifications and thermal management needs before integration into final assemblies.
Selection Notes
Select this component when third-order attenuation is required for three-phase lines. Ensure the 220 Ohm resistance and 0.5 µF capacitance values match the circuit's impedance and filtering characteristics. Verify compatibility with 480 VAC systems and confirm that the 10 W power rating accommodates expected thermal loads during operation.
Part Context
This model belongs to Electrocube's RG series of RC networks, which are engineered for rugged industrial environments. The series includes various configurations for single and three-phase applications, providing reliable protection against electrical noise and arcing in demanding power electronics scenarios.
Replacement Considerations
Consult official substitution guides for compatible alternatives. Verify that any replacement maintains the same third-order low-pass characteristics, delta configuration, and identical electrical ratings (220 Ohm, 0.5 µF, 480 VAC) to ensure circuit integrity.
