RGP20DHE3/73

Description：DIODE STANDARD 200V 2A GP20
Series：Superectifier®
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Box (TB)

SKU:90011efb5e9b Category: Single Diodes Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RGP20DHE3/73 is listed in the Single Diodes range at ChipApex. The manufacturer field lists Vishay General Semiconductor - Diodes Division. Its product description is DIODE STANDARD 200V 2A GP20. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for RGP20DHE3/73

Description：DIODE STANDARD 200V 2A GP20
Series：Superectifier®
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Box (TB)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：200 V
Current - Average Rectified (Io)：2A
Voltage - Forward (Vf) (Max) @ If：1.3 V @ 2 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：150 ns
Current - Reverse Leakage @ Vr：5 µA @ 200 V
Capacitance @ Vr, F：-
Mounting Type：Through Hole

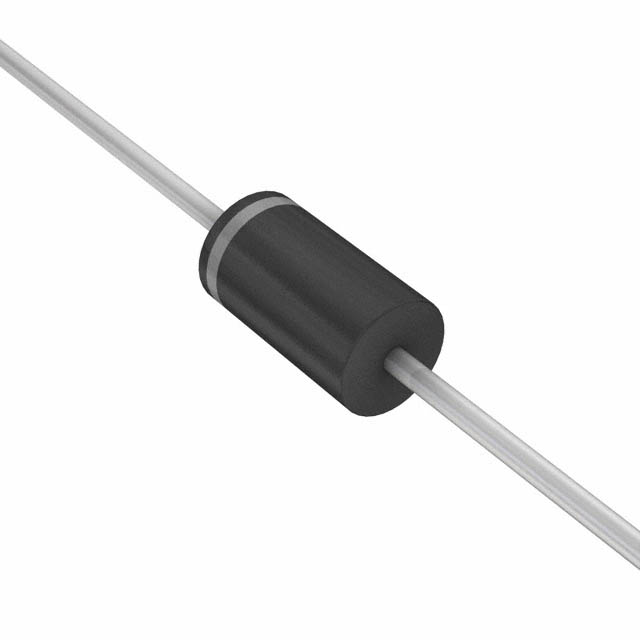

Package / Case：DO-201AA, DO-27, Axial
Supplier Device Package：GP20
Operating Temperature - Junction：-65°C ~ 175°C
Grade：Automotive
Qualification：AEC-Q101

Single Diodes datasheet and documents for RGP20DHE3/73

RGP20DHE3/73

Single Diodes Overview

The RGP20DHE3/73 is a general-purpose fast recovery rectifier diode manufactured by Vishay General Semiconductor - Diodes Division. It features a peak forward current of 2A and a repetitive peak reverse voltage of 200V. The device utilizes the GP20 axial leaded package, specifically DO-204AC (DO-15), designed for through-hole mounting. Key electrical characteristics include a maximum reverse leakage current of 5µA at 200V. This component belongs to the TransZorb® family context but functions as a standard rectifier rather than a TVS diode, offering robust performance in high-frequency switching applications.

Single Diodes Feature Summary

Fast recovery rectification capability suitable for high-frequency conversion
Robust axial leaded construction for reliable through-hole integration
Low reverse leakage current ensuring minimal power loss in off-state

Single Diodes Applications

High-frequency DC-DC converters
Free-wheeling rectification in inductive load circuits
General purpose rectification in power supplies

Single Diodes Procurement Notes

Verify part status carefully as this specific variant may be obsolete or discontinued. Confirm RoHS compliance and packaging type (Tape & Reel vs. Bulk) against current manufacturer announcements. Cross-reference with authorized distributors to ensure authenticity and check for valid replacement components if production continuity is required.

Single Diodes Selection Notes

Select this component when a 2A current rating and 200V blocking voltage are required in an axial package. Ensure the application demands fast recovery characteristics typical of the RGP series. Verify thermal management requirements align with the DO-204AC package capabilities for the intended operating temperature range.

Single Diodes Part Context

This diode is part of Vishay's general-purpose rectifier lineup, distinct from their transient voltage suppression products. It serves as a standard switching element in power electronics. The 'E3' suffix indicates lead-free and RoHS compliance, while '/73' denotes the specific tape and reel packaging configuration provided by the manufacturer.
