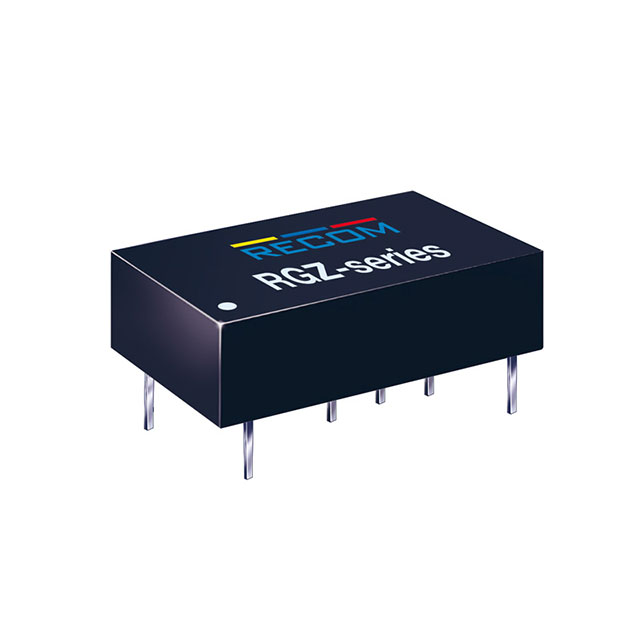

RGZ-1515D

RGZ-1515D is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER +/-15V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RGZ-1515D

• Description：DC DC CONVERTER +/-15V 2W
• Series：ECONOLINE RGZ (2W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：13.5V
• Voltage - Input (Max)：16.5V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：66mA, 66mA
• Power (Watts)：2 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Medical
• Features：SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：84%
• Mounting Type：Through Hole
• Package / Case：14-DIP Module, 6 Leads
• Size / Dimension：0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
