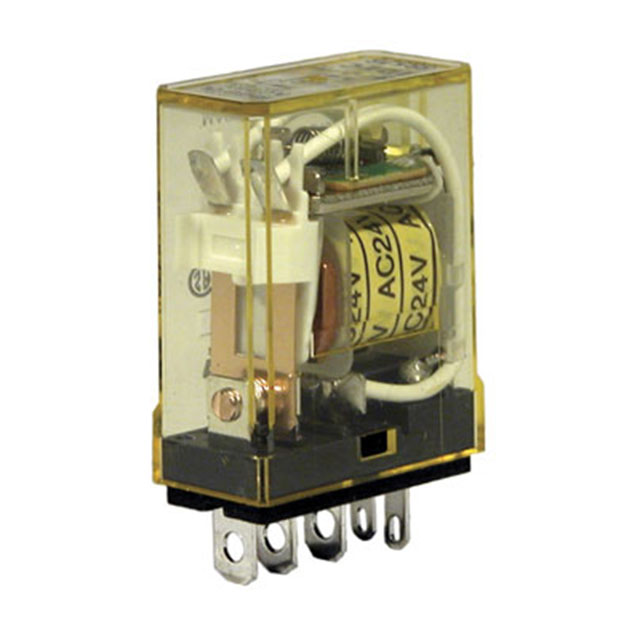

RH1B-ULCAC120V

RH1B-ULCAC120V is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists IDEC. Its product description is RELAY GEN PURPOSE SPDT 10A 120V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for RH1B-ULCAC120V

• Description：RELAY GEN PURPOSE SPDT 10A 120V
• Series：RH
• Mfr：IDEC
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：120VAC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：240VAC, 30VDC - Max
• Load - Max Switching：2400VA, 300W
• Coil Current：7.5 mA
• Coil Type：Non Latching
• Features：Lighted Indicator, Test Button
• Termination Style：Plug In, Quick Connect - 0.187" (4.7mm)
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：96 VAC
• Must Release Voltage：36 VAC
• Operating Temperature：-25°C ~ 70°C
• Contact Material：Silver Cadmium Oxide (AgCdO)
• Approval Agency：CE, CSA, cURus, TUV
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：20 ms
• Release Time：20 ms
