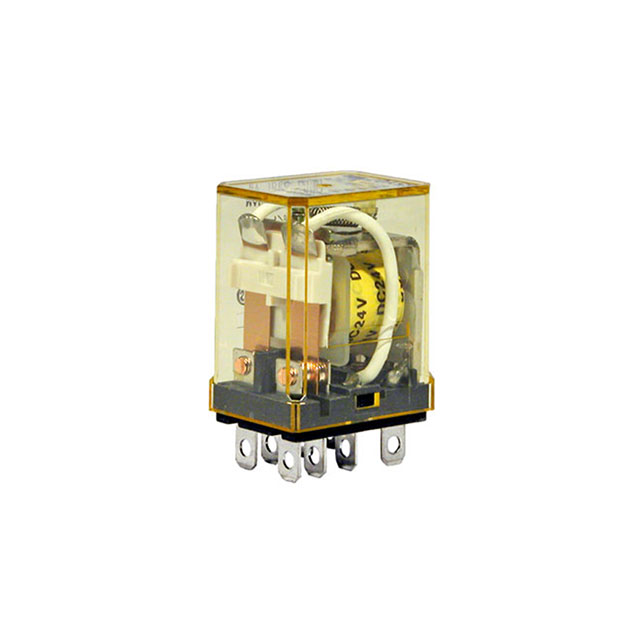

RH2B-ULD-DC24V

RH2B-ULD-DC24V is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists IDEC. Its product description is RELAY GEN PURPOSE DPDT 10A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for RH2B-ULD-DC24V

• Description：RELAY GEN PURPOSE DPDT 10A 24V
• Series：RH
• Mfr：IDEC
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：24VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：240VAC, 30VDC - Max
• Load - Max Switching：2400VA, 300W
• Coil Current：37 mA
• Coil Type：Non Latching
• Features：Diode, Lighted Indicator
• Termination Style：Plug In, Quick Connect - 0.187" (4.7mm)
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：19.2 VDC
• Must Release Voltage：2.4 VDC
• Operating Temperature：-25°C ~ 70°C
• Contact Material：Silver Cadmium Oxide (AgCdO)
• Approval Agency：CE, CSA, cURus, TUV
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：20 ms
• Release Time：20 ms
