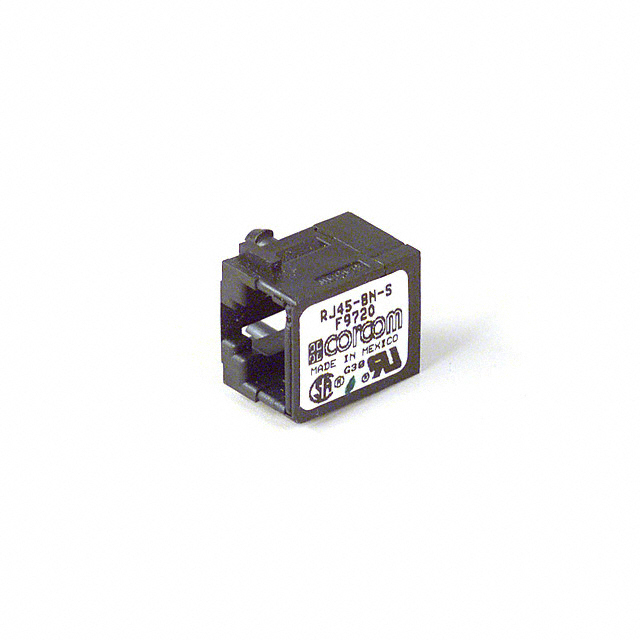

ModularEthernet Connector (RJ45, RJ11) Jacks RJ45-8N-S product image

RJ45-8N-S

Description：CONN MOD JACK 8P8C R/A UNSHLD
Series：N
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:476010fac2b2 Category: ModularEthernet Connector (RJ45, RJ11) Jacks Brand: TE Connectivity Corcom Filters

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RJ45-8N-S is listed in the ModularEthernet Connector (RJ45, RJ11) Jacks range at ChipApex. The manufacturer field lists TE Connectivity Corcom Filters. Its product description is CONN MOD JACK 8P8C R/A UNSHLD. Review the specifications below when checking this part for your BOM.

ModularEthernet Connector (RJ45, RJ11) Jacks specifications for RJ45-8N-S

Description：CONN MOD JACK 8P8C R/A UNSHLD
Series：N
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Connector Type：Jack
Number of Positions/Contacts：8p8c (RJ45, Ethernet)
Number of Ports：1
Number of Rows：1
Mounting Type：Through Hole
Orientation：90° Angle (Right)
Termination：Solder
Shielding：Unshielded
Ratings：-
Features：Board Lock, Filter, Panel Stops
LED Color：Does Not Contain LED
Ingress Protection：-
Tab Direction：Down
Contact Material：Phosphor Bronze
Contact Finish：Gold

ModularEthernet Connector (RJ45, RJ11) Jacks datasheet and documents for RJ45-8N-S
