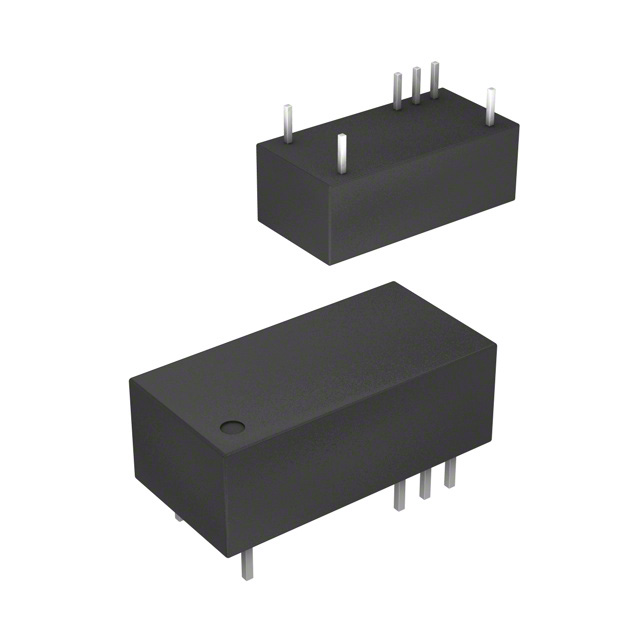

RJZ-2409S

RJZ-2409S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 9V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RJZ-2409S

• Description：DC DC CONVERTER 9V 2W
• Series：ECONOLINE RJZ (2W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：21.6V
• Voltage - Input (Max)：26.4V
• Voltage - Output 1：9V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：222mA
• Power (Watts)：2 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Medical
• Features：SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：84%
• Mounting Type：Through Hole
• Package / Case：14-DIP Module, 6 Leads
• Size / Dimension：0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-

DC DC Converters datasheet and documents for RJZ-2409S
