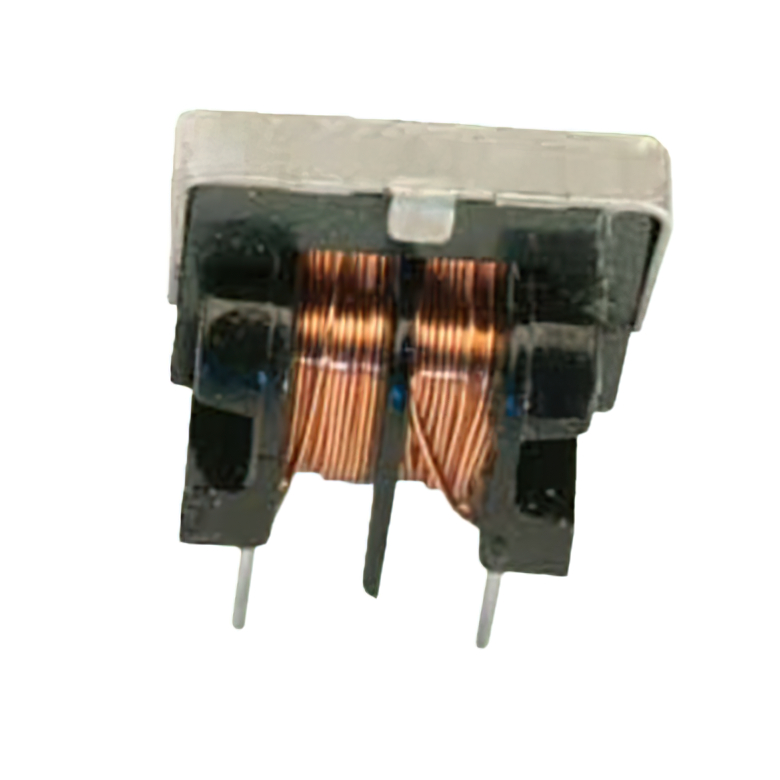

RL-4400-1-0,39

$1.71

Description：CMC 390UH 1.6A 2LN THROUGH HOLE
Series：-
Mfr：Renco Electronics, Inc.
Package：Bulk

SKU:5435e054899e Category: Common Mode Chokes Brand: Renco Electronics, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RL-4400-1-0,39 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Renco Electronics, Inc.. Its product description is CMC 390UH 1.6A 2LN THROUGH HOLE. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for RL-4400-1-0,39

Description：CMC 390UH 1.6A 2LN THROUGH HOLE
Series：-
Mfr：Renco Electronics, Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.6A
DC Resistance (DCR) (Max)：80mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 130°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.626" L x 0.453" W (15.90mm x 11.50mm)
Height (Max)：0.650" (16.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：390 µH @ 10 kHz

Common Mode Chokes datasheet and documents for RL-4400-1-0,39

RL-4400-1-0,39

Common Mode Chokes Overview

The RL-4400-1-0,39 is a common mode choke manufactured by Renco Electronics, Inc. It features a mini U-core design and utilizes through-hole mounting for circuit board integration. The component provides an inductance of 390 mH at a test frequency of 10 kHz. It supports two lines and has a current rating of 1.6 A. The direct current resistance (DCR) is specified as 80 mOhm.

Common Mode Chokes Feature Summary

Mini U-core construction
Through-hole mounting style

Common Mode Chokes Applications

Common mode noise suppression
Signal line filtering

Common Mode Chokes Procurement Notes

Verify the exact part number including the suffix against official manufacturer documentation to ensure correct specifications. Confirm that the through-hole package and electrical parameters match the target design requirements before procurement.

Common Mode Chokes Selection Notes

Select this component when a mini U-core common mode choke with specific inductance and current ratings is required. Ensure the through-hole form factor fits the assembly constraints and that the DCR meets the power loss budget.

Common Mode Chokes Part Context

This component belongs to the common mode choke category from Renco Electronics, Inc. It is designed for electromagnetic interference suppression in electronic circuits using a through-hole mounting technique.

Common Mode Chokes Replacement Considerations

Consult official substitution lists or datasheets for verified equivalent parts. Do not assume cross-compatibility based on generic specifications alone.
