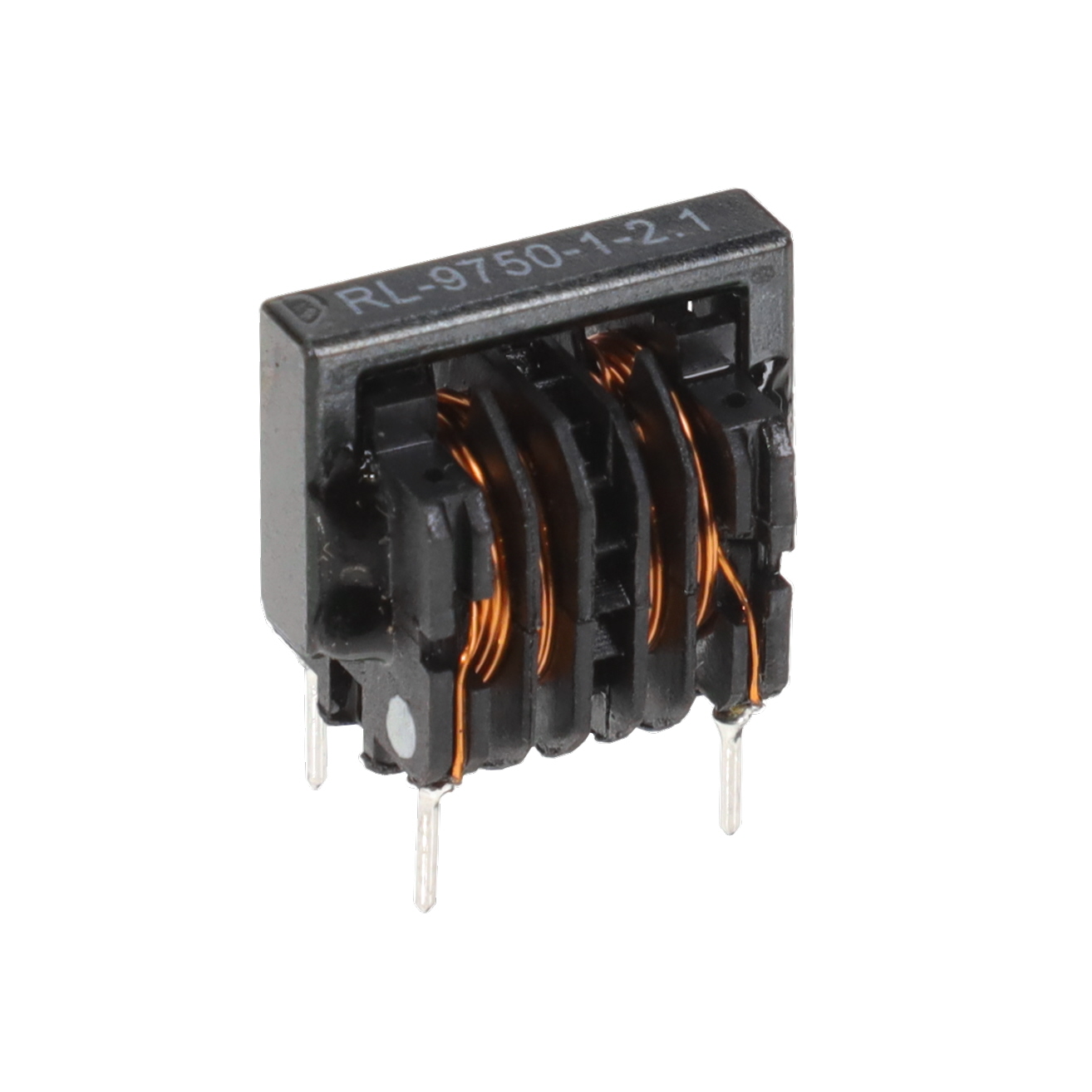

RL-9750-1-2,1

$2.40

Description：CMC 2.1UH 1.5A 2LN THROUGH HOLE
Series：-
Mfr：Renco Electronics, Inc.
Package：Bulk

SKU:842294847584 Category: Common Mode Chokes Brand: Renco Electronics, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RL-9750-1-2,1 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Renco Electronics, Inc.. Its product description is CMC 2.1UH 1.5A 2LN THROUGH HOLE. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for RL-9750-1-2,1

Description：CMC 2.1UH 1.5A 2LN THROUGH HOLE
Series：-
Mfr：Renco Electronics, Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.5A
DC Resistance (DCR) (Max)：170mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 130°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.913" L x 0.610" W (23.20mm x 15.50mm)
Height (Max)：0.886" (22.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：2.1 µH @ 10 kHz

Common Mode Chokes datasheet and documents for RL-9750-1-2,1

RL-9750-1-2,1

Common Mode Chokes Overview

The RL-9750-1-2,1 is a common mode choke manufactured by Renco Electronics, Inc. It features a through-hole mounting style and supports two lines. The inductance is 2.1 mH at 10 kHz. The current rating is 1.5 A with a DC resistance of 170 mOhm. The operating temperature range spans from -40°C to 130°C.

Common Mode Chokes Feature Summary

Through-hole construction for board mounting
Two-line common mode filtering capability
High temperature operation up to 130°C

Common Mode Chokes Applications

AC line filter applications
Common mode noise suppression in electronic circuits

Common Mode Chokes Procurement Notes

Verify the complete part number including the suffix

Common Mode Chokes Selection Notes

Select this component for applications requiring common mode noise reduction in AC line environments. The 1.5 A current rating and 2.1 mH inductance define its filtering characteristics. Verify that the through-hole package fits the target PCB design constraints. Consider the 170 mOhm DC resistance impact on circuit efficiency. Ensure the operating temperature range meets the environmental conditions of the intended deployment scenario without exceeding limits.
