RL-9750-1VM-0,82

Common Mode Chokes Overview

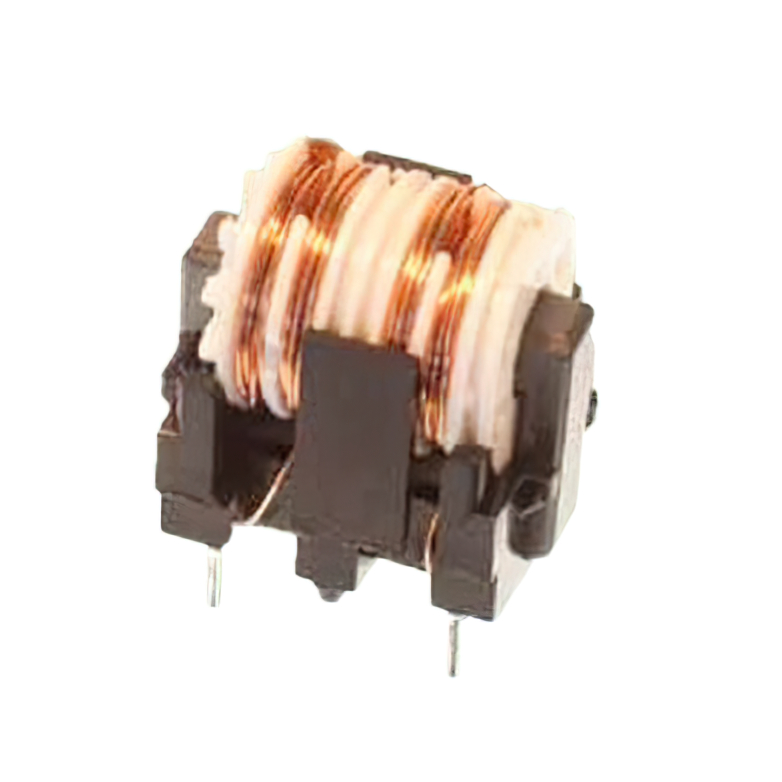

The RL-9750-1VM-0,82 is a through-hole common mode choke manufactured by Renco Electronics. It features an inductance of 820 mH at 10 kHz and supports two lines. The component has a maximum current rating of 2A and a typical DC resistance of 72 mOhm. It operates within a temperature range of -40°C to 130°C.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for two-line circuits
• Designed for through-hole mounting applications
• Capable of handling high current loads up to 2A

Common Mode Chokes Applications

• AC line filtering
• EMI suppression in power supplies
• Signal integrity protection in electronic circuits

Common Mode Chokes Procurement Notes

Verify the exact part number suffix against official Renco documentation to ensure correct inductance and current ratings. Confirm package type and pin configuration match your PCB layout requirements before ordering. Check for RoHS compliance status if required by your manufacturing standards.

Common Mode Chokes Selection Notes

Select this component when high inductance is required for effective low-frequency noise attenuation. Ensure the operating current does not exceed the 2A rating to prevent saturation. Verify that the through-hole footprint fits the assembly process constraints.

Common Mode Chokes Part Context

This component belongs to the RL-9750 series of chokes from Renco Electronics, a brand acquired by Standex Electronics. The series includes various configurations for different inductance and current requirements, serving as legacy components in custom inductor and transformer applications.

Common Mode Chokes Replacement Considerations

Consult official substitution guides for equivalent parts with matching inductance and current ratings. Verify mechanical dimensions and terminal compatibility before replacing. Cross-reference specifications with other manufacturers' common mode chokes if direct substitutes are unavailable.
