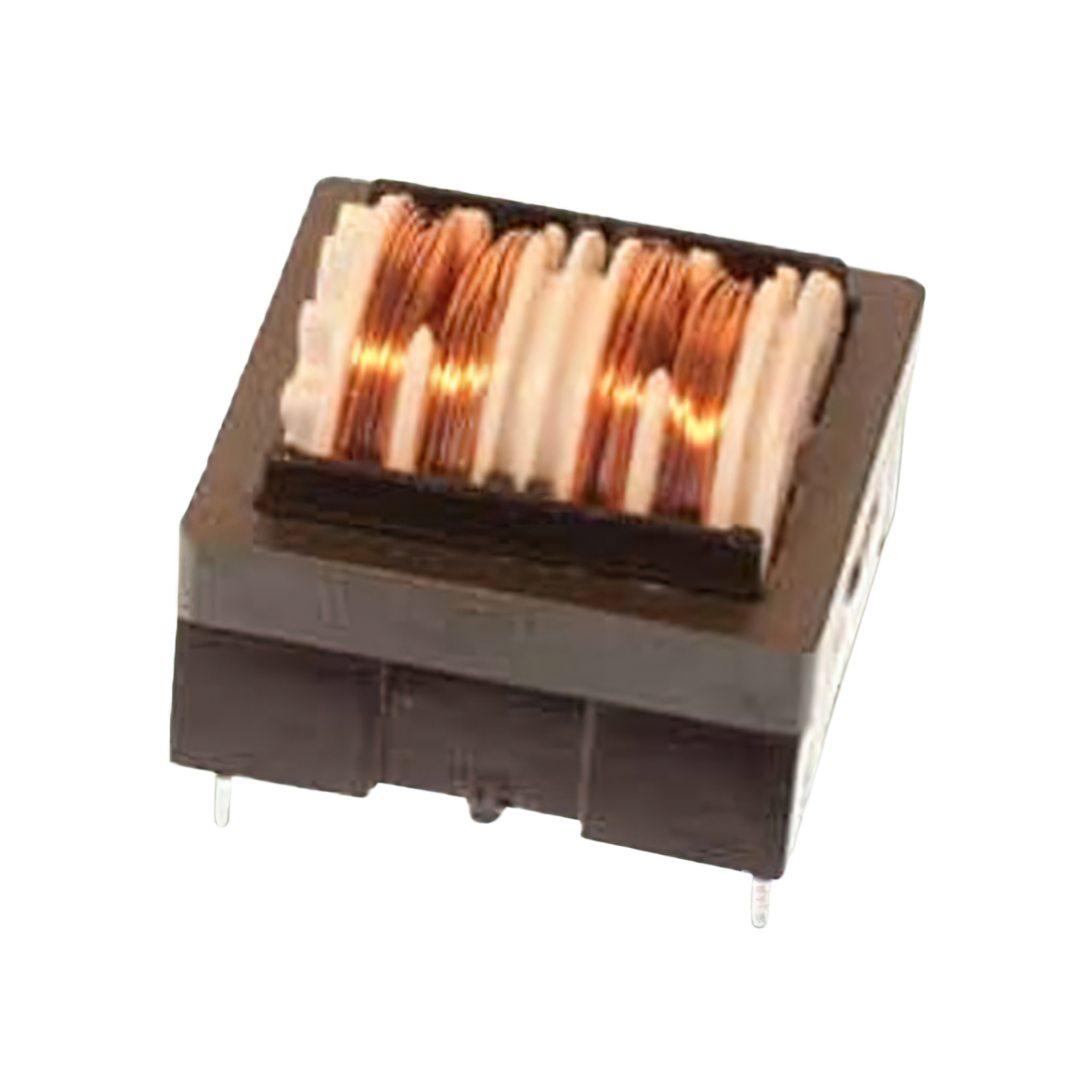

RL-9750-3HM-33,0 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Renco Electronics, Inc.. Its product description is CMC 33MH 500MA 2LN THROUGH HOLE. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for RL-9750-3HM-33,0
- Description：CMC 33MH 500MA 2LN THROUGH HOLE
- Series：-
- Mfr：Renco Electronics, Inc.
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：500mA
- DC Resistance (DCR) (Max)：1.184Ohm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 130°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.024" L x 0.984" W (26.00mm x 25.00mm)
- Height (Max)：0.807" (20.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：33 mH @ 10 kHz
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for RL-9750-3HM-33,0
Common Mode Chokes Overview
The RL-9750-3HM-33,0 is a through-hole common mode choke manufactured by Renco Electronics, Inc. It features an inductance of 33 mH measured at 10 kHz and supports a current rating of 500 mA. The component has a typical DC resistance (DCR) of 1.184 Ohms. Designed for two-line applications, it serves as an electromagnetic interference filter suitable for insertion into circuit boards via standard mounting techniques.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for dual-line circuits
- Utilizes through-hole mounting for secure board integration
- Engineered for specific inductance and current handling requirements
Common Mode Chokes Applications
- Electromagnetic interference filtering in electronic assemblies
- Power line noise reduction in equipment requiring common mode chokes
- Signal integrity protection in dual-conductor transmission paths
Common Mode Chokes Procurement Notes
Verify the exact part number RL-9750-3HM-33,0 against manufacturer datasheets to confirm specifications such as 33 mH inductance and 500 mA current rating. Ensure compatibility with through-hole assembly processes. Check for RoHS compliance status if required by your manufacturing standards. Confirm package dimensions and lead form before ordering to fit your PCB layout constraints accurately.
Common Mode Chokes Selection Notes
Select this component when a 33 mH inductance value is required for common mode noise attenuation in two-wire configurations. Consider the 500 mA current rating to ensure adequate headroom for your application's operational load. Verify that the through-hole package style aligns with your production capabilities and PCB design rules. Compare DCR values against system power loss tolerances.
Common Mode Chokes Part Context
This component belongs to the RL-9750 series of common mode chokes from Renco Electronics, Inc., which specializes in custom inductors and filters. The series offers various inductance and current combinations tailored for different EMI suppression needs. Renco Electronics was acquired by Standex Electronics in 2020, maintaining its legacy in providing reliable magnetic components for industrial and commercial applications.
Common Mode Chokes Replacement Considerations
Consult official substitution guides or contact Renco/Standex directly for verified equivalent parts. Do not assume cross-compatibility with other manufacturers' 33 mH chokes without verifying electrical parameters and physical dimensions.
