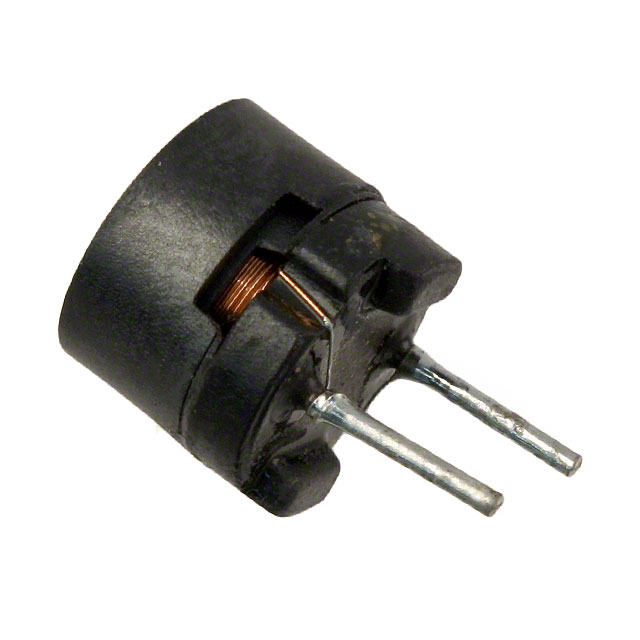

RL875S-102K is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Bourns Inc.. Its product description is FIXED IND 1MH 230MA 2.72 OHM TH. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for RL875S-102K
- Description：FIXED IND 1MH 230MA 2.72 OHM TH
- Series：RL875S
- Mfr：Bourns Inc.
- Package：Bulk
- Type：Drum Core, Wirewound
- Material - Core：Ferrite
- Inductance：1 mH
- Tolerance：±10%
- Current Rating (Amps)：230 mA
- Current - Saturation (Isat)：-
- Shielding：Shielded
- DC Resistance (DCR)：2.72Ohm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-30°C ~ 100°C
- Inductance Frequency - Test：1 kHz
- Mounting Type：Through Hole
- Package / Case：Radial, Vertical Cylinder
- Supplier Device Package：-
- Size / Dimension：0.307" Dia (7.80mm)
- Height - Seated (Max)：0.295" (7.50mm)
- Features：-
Fixed Inductors datasheet and documents for RL875S-102K
Fixed Inductors Overview
The RL875S-102K-RC is a fixed inductor from the Bourns RL875S series, featuring a shielded drum core and wirewound construction. It has a nominal inductance of 1 mH with a tolerance of ±10%. The component provides a maximum DC resistance of 2.72 Ohms and supports a current rating up to 2.4 A. Designed for radial vertical cylinder mounting, it operates within a temperature range of -40°C to 105°C. The inductance is tested at a frequency of 1 kHz, and the maximum seated height is 0.295 inches (7.50 mm).
Fixed Inductors Feature Summary
- Shielded construction minimizes electromagnetic interference.
- High Q factor ensures efficient performance.
- RoHS compliant manufacturing process.
Fixed Inductors Applications
- RF choke applications
- General purpose filtering circuits
- Power supply noise suppression
Fixed Inductors Procurement Notes
Verify that the specific part number includes the '-RC' suffix to confirm RoHS compliance status as documented in official specifications. Ensure the ordering code matches the exact inductance value and tolerance requirements for your circuit design. Confirm package orientation compatibility during procurement to avoid assembly issues.
Fixed Inductors Selection Notes
Select this component when a shielded radial inductor with high current handling capability is required. The 1 mH value suits general filtering needs where low parasitic effects are critical. Consider the 2.4 A current rating against peak load conditions to ensure reliable operation without saturation.
Fixed Inductors Part Context
This component belongs to the Bourns RL875S series of radial lead RF chokes. The series offers an inductance range from 10 μH to 10,000 μH. These components are designed for robust performance in various electronic applications requiring stable inductive properties.
Fixed Inductors Replacement Considerations
Consult official Bourns documentation for direct substitutes within the RL875S family, such as variations in inductance values like RL875S-101K. Verify pinout and dimensional compatibility before replacing existing components in established designs.
Fixed Inductors FAQ
What is the maximum operating temperature for this inductor?
The maximum operating temperature is 105°C.
Is this component RoHS compliant?
Yes, the RL875S-102K-RC variant is RoHS compliant.
