RLP-30+

Overview

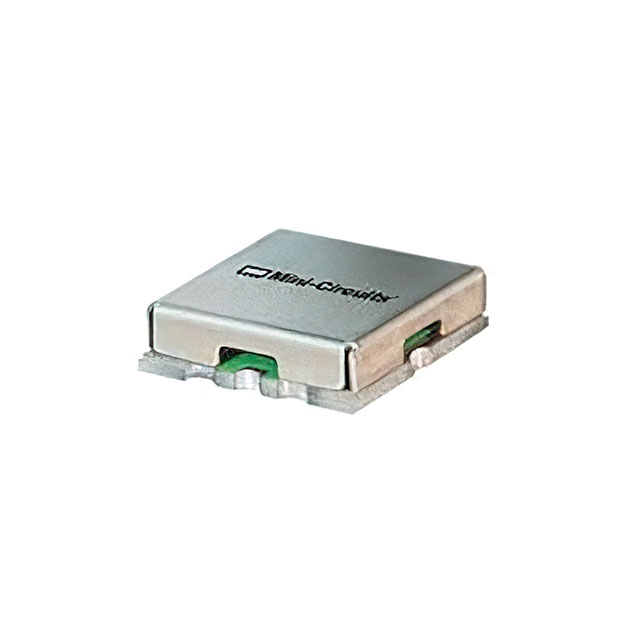

The RLP-30+ is a lumped LC low-pass filter designed for surface-mount applications. It provides a cutoff frequency of 30 MHz with a 50 Ohm impedance. The component utilizes a GP1212 case style, ensuring compact integration into PCB layouts. This filter is engineered to attenuate high-frequency signals while passing lower frequencies, making it suitable for signal conditioning tasks in RF and IF circuits.

Feature Summary

• Lumped LC topology for effective high-frequency attenuation
• Surface-mount design for automated PCB assembly
• Optimized for 50 Ohm system impedance matching

Applications

• Signal conditioning in analog circuits
• Low-pass filtering in RF front-ends
• Noise suppression in communication systems

Procurement Notes

Verify the part number suffix '+' indicates RoHS compliance when sourcing. Confirm the manufacturer is Mini-Circuits to ensure genuine components. Check datasheet revisions for any updates to electrical characteristics or mechanical dimensions before finalizing procurement specifications.

Selection Notes

Select this component when a sharp cutoff near 30 MHz is required in a small footprint. Ensure the application operates within the specified 50 Ohm impedance environment. Consider the GP1212 package size constraints during PCB layout planning to maintain signal integrity.

Part Context

This component belongs to Mini-Circuits' line of passive RF filters. It serves as a fundamental building block for frequency management in electronic designs. The product is widely used in industries requiring reliable signal filtering at moderate radio frequencies.

Replacement Considerations

The PLP-30+ offers a similar DC to 32 MHz range but uses an A01 package. Verify compatibility with existing PCB footprints if substituting. Consult official documentation for precise parameter comparisons between these variants.
