RLZTE-1133A

Single Zener Diodes Overview

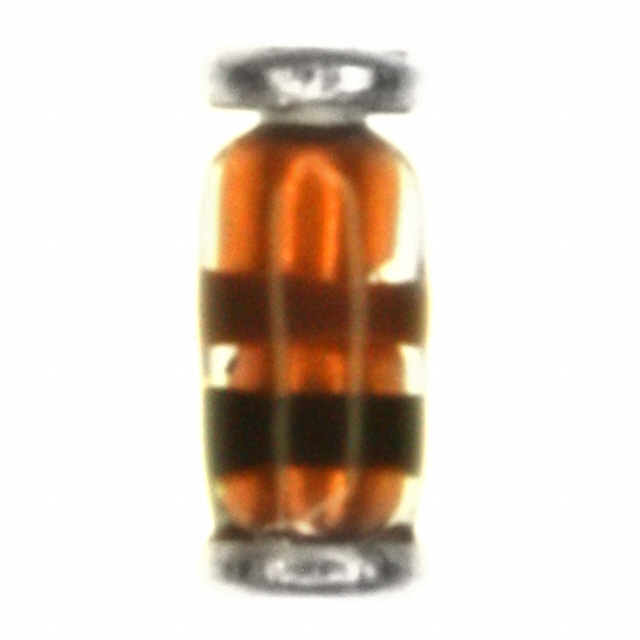

The RLZTE-1133A is a single Zener diode manufactured by ROHM Semiconductor, designed for surface-mount applications in the LLDS package. It features a nominal Zener voltage of 31.1 V with a tight tolerance of ±3%. The device supports a maximum power dissipation of 500 mW, making it suitable for high-reliability industrial and consumer electronic circuits requiring precise voltage regulation.

Single Zener Diodes Feature Summary

• High-reliability Zener diode solution for industrial and consumer use
• Surface-mount LLDS package design
• Tight voltage tolerance of ±3% for precision regulation

Single Zener Diodes Applications

• Industrial electronic circuits
• Consumer electronics voltage regulation
• Precision reference voltage generation

Single Zener Diodes Procurement Notes

Verify the specific manufacturer part number against official ROHM Semiconductor documentation to ensure authenticity. Confirm that the LLDS package type matches your PCB footprint requirements. Check for any specific handling or storage conditions outlined in the official datasheet before procurement.

Single Zener Diodes Selection Notes

Select this component when a stable 31.1 V reference is required in a compact surface-mount form factor. The ±3% tolerance makes it appropriate for applications demanding higher precision than standard Zener diodes. Ensure the 500 mW power rating aligns with the expected thermal load in the target circuit design.

Single Zener Diodes Part Context

This component belongs to ROHM Semiconductor's discrete semiconductor product line, specifically categorized under single Zener diodes. It is engineered to provide reliable voltage clamping and regulation in modern electronic systems where space constraints necessitate small surface-mount packages like LLDS.

Single Zener Diodes Replacement Considerations

Consult official ROHM Semiconductor substitution guides for verified equivalent parts. Ensure any replacement maintains the 31.1 V nominal voltage, ±3% tolerance, and 500 mW power dissipation within the LLDS package format.
