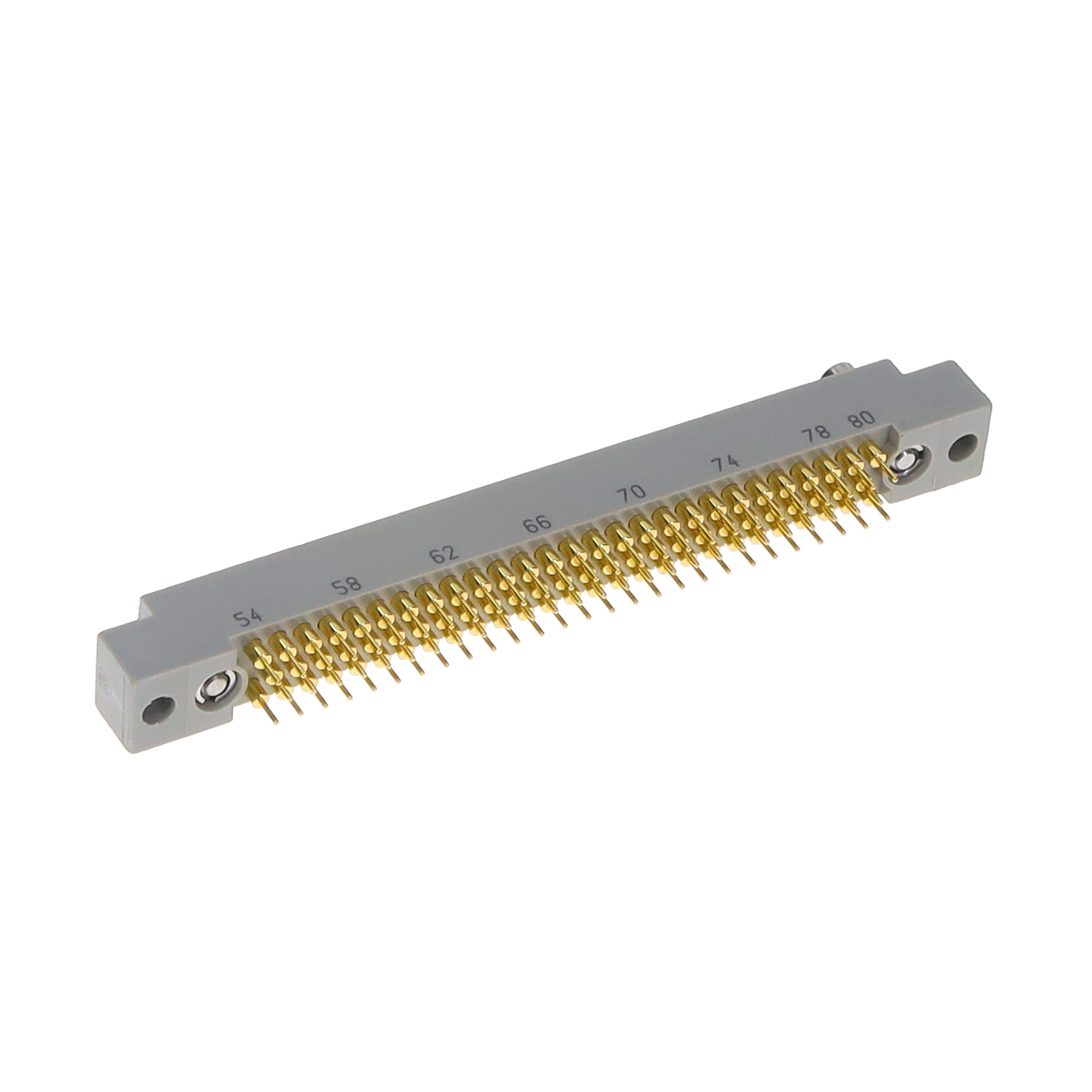

RM322-080-251-2900

RM322-080-251-2900 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists AirBorn, a Molex company. Its product description is RM322-080-251-2900. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for RM322-080-251-2900

• Description：RM322-080-251-2900
• Series：R
• Mfr：AirBorn, a Molex company
• Package：Bulk
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：80
• Number of Positions Loaded：All
• Pitch - Mating：0.075" (1.91mm)
• Number of Rows：3
• Row Spacing - Mating：0.075" (1.91mm)
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Insulation Color：Gray
• Insulation Height：0.300" (7.62mm)
• Contact Length - Post：0.140" (3.56mm)
• Operating Temperature：-65°C ~ 125°C
• Material Flammability Rating：-
• Contact Finish - Post：Gold
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Mating Guide, Mounting Flange
• Current Rating (Amps)：3A
• Voltage Rating：750V

Headers, Receptacles, Female Sockets datasheet and documents for RM322-080-251-2900
