RMK-3-451+

Overview

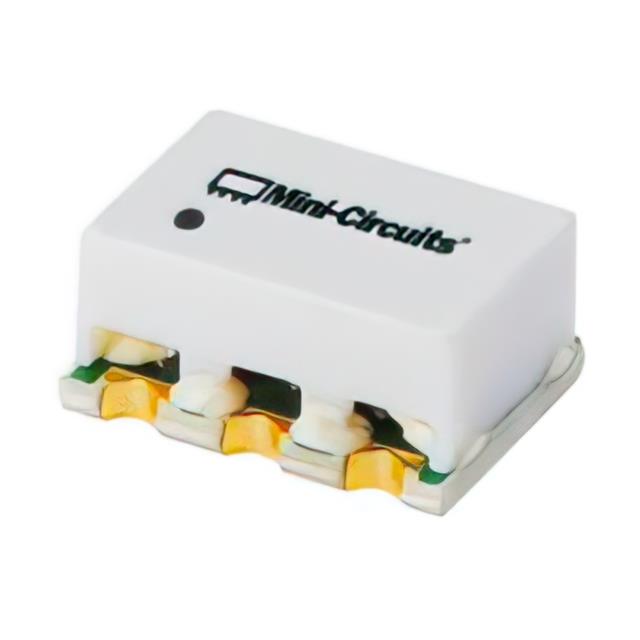

The RMK-3-451+ is a surface-mount RF frequency multiplier designed for general-purpose applications. It operates as an active device within the 300 MHz to 450 MHz output frequency range. This component functions as a 3X multiplier, effectively tripling the input signal frequency. The unit is RoHS3 compliant and utilizes a compact surface-mount technology (SMT) package suitable for integration into modern electronic assemblies.

Feature Summary

• Active surface-mount frequency multiplier design
• General-purpose RF signal conditioning capability
• RoHS3 compliant construction

Applications

• RF and microwave system development
• Signal manipulation requiring precise frequency conversion
• Up/down converter implementations

Procurement Notes

Verify the specific manufacturer designation upon ordering, as distribution channels may list this part under alternative branding or naming conventions. Confirm that the required output frequency range of 300 MHz to 450 MHz aligns with your system specifications before procurement. Ensure compatibility with surface-mount assembly processes.

Selection Notes

Select this component when a compact, active solution is required for tripling RF frequencies in the VHF/UHF spectrum. Consider its surface-mount form factor for space-constrained PCB layouts. Evaluate its suitability for general-purpose applications where standard frequency multiplication is needed without specialized custom requirements.

Part Context

This component belongs to the class of RF IC frequency multipliers and up/down converters. It serves as a signal conditioning element within broader radio frequency infrastructure. The device supports the design of systems requiring stable frequency generation through harmonic multiplication techniques.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
