RMK-5-13+

Overview

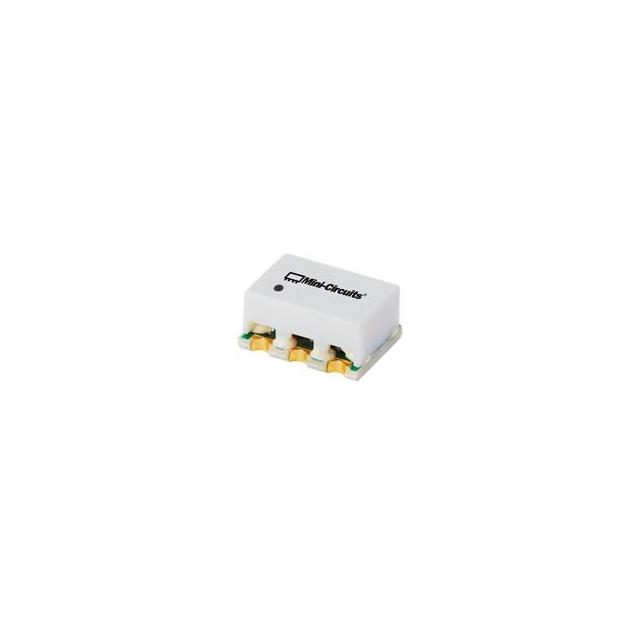

The RMK-5-13+ is a surface-mount frequency multiplier manufactured by Mini-Circuits. It functions as a five-times multiplier with an input frequency range of 150 MHz to 200 MHz and an output frequency range of 750 MHz to 1000 MHz. The component operates within a temperature range of -40°C to +85°C and features a RoHS-compliant construction.

Feature Summary

• Provides a fixed multiplication factor of five for RF signal processing
• Designed for surface-mount technology (SMT) integration
• Operates reliably across industrial temperature extremes

Applications

• RF signal generation systems
• Frequency synthesis circuits
• Wireless communication transceivers

Procurement Notes

Verify the specific part number suffix against official Mini-Circuits documentation to confirm compliance with current environmental standards. Ensure that the ordering specifications match the required package type and quantity constraints defined in the manufacturer's catalog. Cross-reference the datasheet revision date to guarantee access to the most recent technical parameters and handling instructions.

Selection Notes

Select this component when a precise five-fold frequency increase is required within the specified input and output bands. Evaluate the thermal management requirements to ensure operation remains within the -40°C to +85°C range. Confirm that the system impedance matches the component's design characteristics for optimal signal transfer.

Part Context

This device belongs to the RMK series of frequency multipliers from Mini-Circuits, which are engineered for compact RF applications. The series offers various multiplication factors and frequency ranges to support diverse upconversion needs in modern wireless infrastructure and test equipment designs.

Replacement Considerations

Consult the Mini-Circuits official substitution guide for verified alternative models. Do not assume functional equivalence with other series without confirming matching electrical specifications and pinout compatibility.
