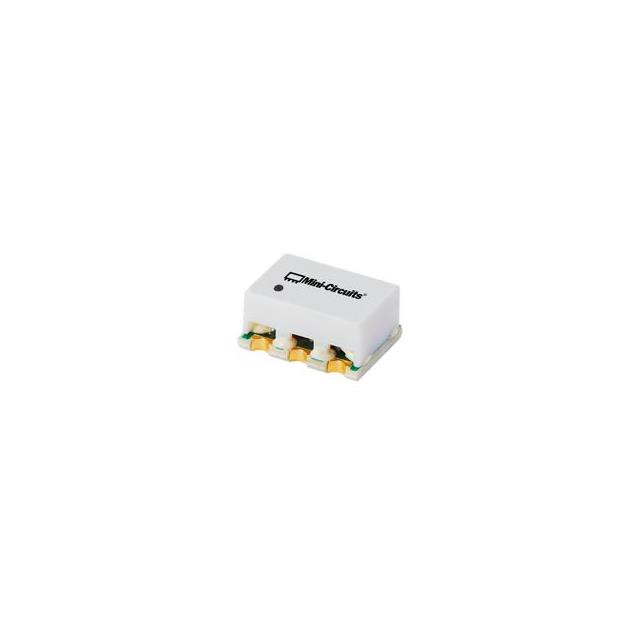

RMK-5-2751+

$27.16

Description：MLTPLR, OUTPUT 2250 - 2750 MHZ
Series：-
Mfr：Mini-Circuits
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:1ab6ff938321 Category: RF Misc ICs and Modules Brand: Mini-Circuits

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MLTPLR, OUTPUT 2250 - 2750 MHZ
Series：-
Mfr：Mini-Circuits
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Frequency Multiplier
Frequency：2.25GHz ~ 2.75GHz
RF Type：General Purpose
Secondary Attributes：Up/Down Converter
Mounting Type：Surface Mount
Package / Case：6-SMD, No Lead
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

RMK-5-2751+

Overview

The RMK-5-2751+ is a surface-mount frequency multiplier from Mini-Circuits, designed for RF signal processing applications. It operates with an input frequency range of 450 to 550 MHz and produces an output frequency between 2.25 GHz and 2.75 GHz. The device requires an input power of 17 dBm to function effectively. It features a 50 Ohms impedance and utilizes a compact SMD package measuring 7.9x6.4 mm. The component supports a wide operating temperature range from -40°C to +85°C, ensuring reliability in various environmental conditions.

Feature Summary

Provides frequency multiplication from the 450-550 MHz input band to the 2.25-2.75 GHz output band
Utilizes a compact surface-mount design for efficient board integration
Operates within a standard industrial temperature range for robust performance

Applications

RF signal generation systems
Wireless communication infrastructure
Test and measurement equipment

Procurement Notes

Verify the specific datasheet version when sourcing, as Mini-Circuits may update electrical specifications over time. Confirm that the required input power of 17 dBm is available in your circuit design. Ensure the PCB layout accommodates the 7.9x6.4 mm footprint and thermal requirements for continuous operation at elevated temperatures up to 85°C.

Selection Notes

Select this component when a five-fold frequency multiplication is required from a sub-GHz source to the microwave band. It is suitable for designs needing a fixed multiplication ratio without complex synthesizer loops. Consider the 17 dBm drive level requirement when designing the preceding amplifier stage to ensure optimal conversion efficiency and output stability.

Part Context

This part belongs to the RMK series of frequency multipliers by Mini-Circuits. These devices are engineered for general-purpose RF applications where reliable harmonic generation is needed. The series offers various models covering different frequency ranges, allowing designers to select components that match specific system bandwidths and output requirements while maintaining consistent interface characteristics.
