Product Detailed Parameters

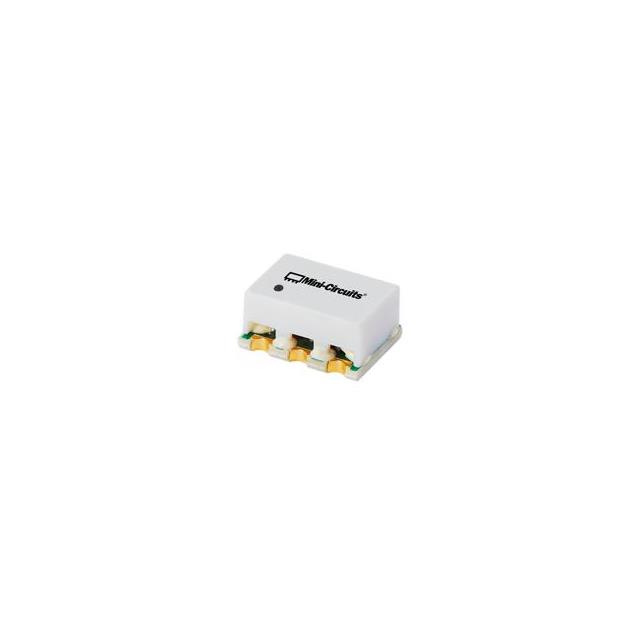

- Description：5X SMT MULTIPLIER
- Series：-
- Mfr：Mini-Circuits
- Package：Tape & Reel (TR),Cut Tape (CT)
- Function：Frequency Multiplier
- Frequency：500MHz ~ 750MHz
- RF Type：General Purpose
- Secondary Attributes：Up/Down Converter
- Mounting Type：Surface Mount
- Package / Case：6-SMD, No Lead
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview
The RMK-5-751+ is a surface-mount frequency multiplier designed by Mini-Circuits. It operates with an input frequency range of 100 to 150 MHz and produces an output frequency range of 500 to 750 MHz. The device functions as a 5X multiplier, utilizing specially selected silicon Schottky diodes and compatible filter circuitry. It requires an input power of 17 dBm for operation.
Feature Summary
- Utilizes silicon Schottky diodes for frequency multiplication
- Provides 5X frequency multiplication capability
- Integrates compatible filter circuitry
- Surface-mount package design
Applications
- RF signal generation circuits
- Frequency synthesis systems
- Wireless communication transceivers
- Test and measurement equipment
Procurement Notes
Verify the specific datasheet version when sourcing, as component specifications may be updated. Confirm that the required input power level of 17 dBm is available in your system design. Ensure the operating temperature range meets your application requirements. Check for availability of evaluation boards if initial prototyping is needed. Validate impedance matching networks for optimal performance at the specified frequencies.
Selection Notes
Select this component when a compact solution for 5X frequency multiplication is required within the 100-150 MHz input range. It is suitable for designs needing output frequencies between 500 and 750 MHz. Consider its surface-mount format for PCB space constraints. Evaluate the need for external filtering beyond the integrated circuitry based on harmonic rejection requirements.
Part Context
Mini-Circuits is a global leader in RF, IF, and microwave components. The RMK-5-751+ belongs to their portfolio of RF miscellaneous ICs and modules. This series focuses on cost-effective solutions using silicon technology for various signal processing applications across commercial and industrial sectors.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model.
FAQ
What is the multiplication factor of the RMK-5-751+?
The RMK-5-751+ is a 5X frequency multiplier.
What input power is required for operation?
The device requires an input power of 17 dBm.
Does the RMK-5-751+ include internal filtering?
Yes, it utilizes compatible filter circuitry along with silicon Schottky diodes.
