RN116-2-02-2M2

$1.90

Description：CMC 2.2MH 2A 2LN TH
Series：RN
Mfr：Schaffner EMC Inc.
Package：Tube

SKU:fb01ed3d314a Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 2.2MH 2A 2LN TH
Series：RN
Mfr：Schaffner EMC Inc.
Package：Tube
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：66mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：300V
Operating Temperature：-40°C ~ 100°C
Ratings：-
Approval Agency：ENEC, UR, VDE
Features：-
Mounting Type：Through Hole
Size / Dimension：0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max)：0.531" (13.50mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：2.2 mH @ 10 kHz
Qualification：-
Grade：-

Download product information

RN116-2-02-2M2

Overview

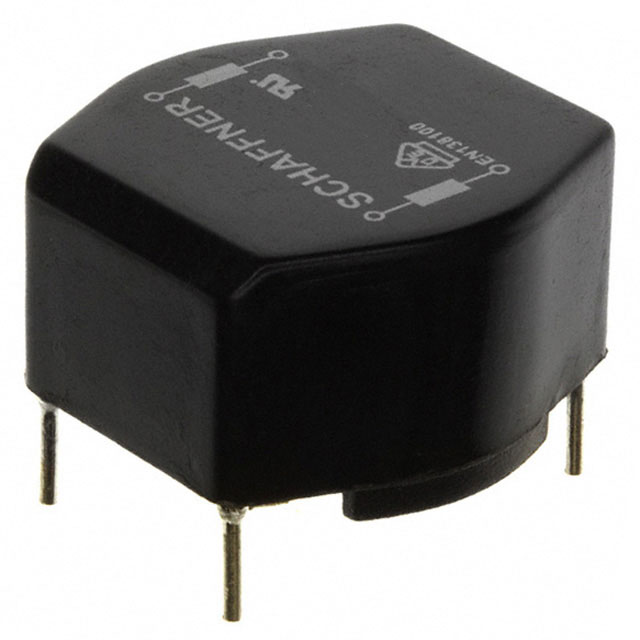

The Schaffner RN116-2-02-2M2 is a horizontal common mode choke from the RN series, designed for electromagnetic interference suppression. It features an inductance of 2.2 mH and supports a maximum current of 2 A with a DC resistance of 66 mOhms. The component utilizes a through-hole mounting style with four PC pins and operates within a temperature range of -40°C to +100°C.

Feature Summary

Provides effective common mode noise attenuation for differential signal lines
Horizontal chassis design facilitates compact board integration
Robust construction suitable for demanding thermal environments

Applications

Power supply input filtering
Data line protection in industrial equipment
EMI suppression in consumer electronics

Procurement Notes

Verify the specific part number RN116-2-02-2M2 against official Schaffner documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with existing PCB footprints and thermal management requirements before finalizing procurement decisions.

Selection Notes

Select this component when a 2.2 mH inductance at 2 A is required for common mode noise reduction. Consider the horizontal form factor and through-hole termination for assembly constraints. Evaluate the 66 mOhm DC resistance impact on circuit efficiency.

Part Context

This component belongs to the RN series of EMC/EMI chokes manufactured by Schaffner. The series offers various inductance values and current ratings tailored for different filtering applications. The RN116 variant specifically denotes a horizontal configuration with four-pin termination.

Replacement Considerations

Consult official Schaffner substitution guides for verified alternatives. Cross-reference inductance, current rating, and physical dimensions to ensure functional equivalence without modifying the host design.
