Product Detailed Parameters
- Description：CMC 10MH 1.5A 2LN TH
- Series：RN
- Mfr：Schaffner EMC Inc.
- Package：Tube
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.5A
- DC Resistance (DCR) (Max)：250mOhm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：300V
- Operating Temperature：-40°C ~ 100°C
- Ratings：-
- Approval Agency：ENEC, UR, VDE
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.886" L x 0.846" W (22.50mm x 21.50mm)
- Height (Max)：0.531" (13.50mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：10 mH @ 10 kHz
- Qualification：-
- Grade：-
Download product information
Overview

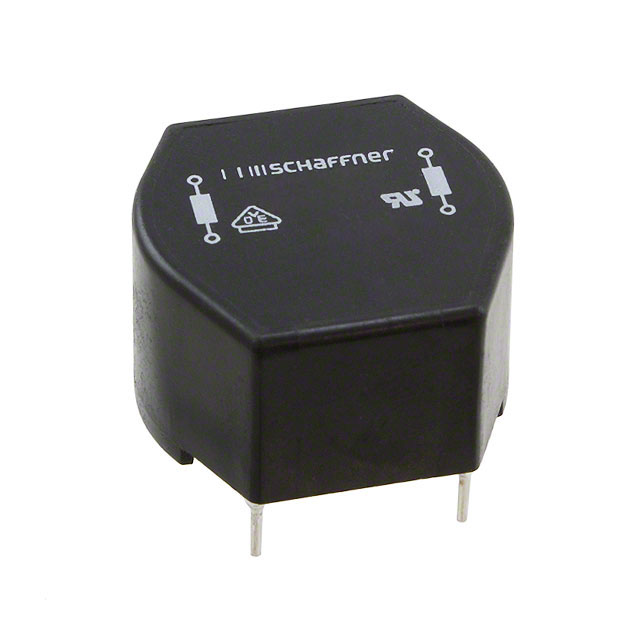

The RN122-1.5-02-10M is a common mode choke from the Schaffner RN series, designed for PCB mounting via through-hole termination. It features a horizontal configuration with a ferrite core and operates within a temperature range of -40°C to +100°C. Key electrical parameters include an inductance of 10 mH at a test frequency of 10 kHz, with tolerances of -30% and +50%. The component supports a maximum DC current of 1.5 A and has a maximum DC resistance of 250 mOhms. Its physical dimensions are 22.50 mm x 21.50 mm x 13.50 mm.
Feature Summary
- Provides common mode noise suppression for power lines using a current compensated choke design.
Applications
- EMI filtering in AC power line circuits
Procurement Notes
Verify the manufacturer part number RN122-1.5-02-10M against official TE Connectivity or Schaffner documentation to confirm specifications. Ensure compatibility with your PCB footprint and thermal requirements. Check RoHS compliance status in the latest datasheet. Confirm that the 1.5 A current rating and 10 mH inductance meet your circuit design needs before procurement.
Selection Notes
Select this component when a horizontal through-hole common mode choke is required for power line applications. Consider the 1.5 A current handling and 10 mH inductance for EMI suppression. Verify that the 250 mOhm DCR fits your voltage drop constraints. Ensure the operating temperature range of -40°C to +100°C suits your environment.
Part Context
This component belongs to the Schaffner RN series of common mode chokes. These components are engineered for electromagnetic interference (EMI) suppression in electronic equipment. The RN series offers various inductance and current ratings to suit different power line filtering requirements across industrial and consumer applications.
Replacement Considerations
Publicly confirmed substitute part numbers for RN122-1.5-02-10M were not found in the provided source material. Consult official TE Connectivity or Schaffner resources for verified cross-references.
FAQ
What is the inductance tolerance for the RN122-1.5-02-10M?
The inductance tolerance is specified as -30% and +50%.
Is the RN122-1.5-02-10M shielded?
No, the component is unshielded.
