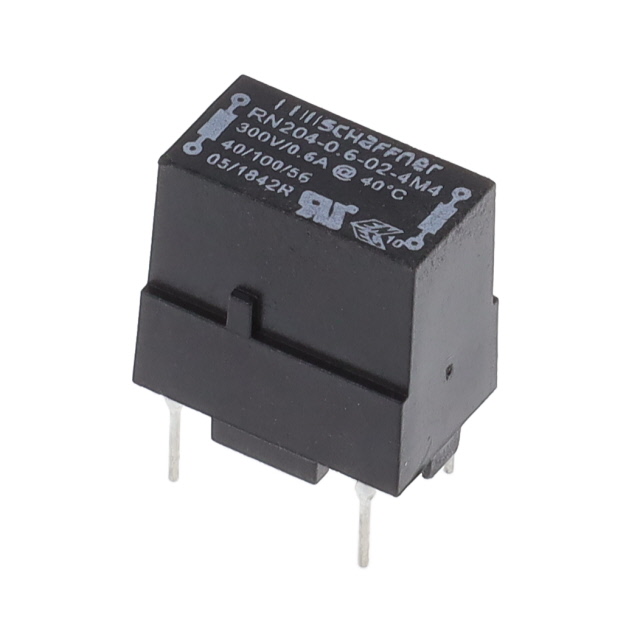

RN204-0.6-02-4M4

$2.20

Description：CMC 4.4MH 600MA 2LN TH
Series：RN
Mfr：Schaffner EMC Inc.
Package：Tube

SKU:c1c2eddc544f Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 4.4MH 600MA 2LN TH
Series：RN
Mfr：Schaffner EMC Inc.
Package：Tube
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：600mA
DC Resistance (DCR) (Max)：350mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：300V
Operating Temperature：-40°C ~ 100°C
Ratings：-
Approval Agency：ENEC, UR, VDE
Features：-
Mounting Type：Through Hole
Size / Dimension：0.551" L x 0.354" W (14.00mm x 9.00mm)
Height (Max)：0.575" (14.61mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：4.4 mH @ 10 kHz
Qualification：-
Grade：-

Download product information

RN204-0.6-02-4M4

Overview

The RN204-0.6-02-4M4 is a vertical through-hole common mode choke from the Schaffner RN series, manufactured by TE Connectivity / Schaffner. It features a ferrite core and operates within a temperature range of -40°C to +100°C. Key electrical parameters include an inductance of 4.4 mH with tolerances of -30% and +50%, a maximum DC current rating of 0.6 A, and a typical maximum DC resistance of 350 mOhms. The component is unshielded and measures 14 mm x 9 mm x 14.3 mm.

Feature Summary

Provides common mode noise suppression for two-line circuits using a current compensated choke design.
Utilizes a ferrite core material for effective electromagnetic interference filtering.
Designed for vertical PCB mounting via through-hole termination.

Applications

Power supply input filtering
Battery charger EMI reduction
Portable device power line protection

Procurement Notes

Verify the specific part number RN204-0.6-02-4M4 against official TE Connectivity or Schaffner datasheets to confirm compatibility. Ensure the required inductance, current rating, and physical dimensions match your circuit design constraints before procurement.

Selection Notes

Select this component when designing circuits requiring common mode noise attenuation for low-current applications up to 0.6 A. Consider the vertical form factor and through-hole mounting style for PCB layout integration. Verify that the 350 mOhm DC resistance meets your voltage drop requirements.

Part Context

This component belongs to the Schaffner RN series of common mode chokes. These components are engineered for EMC/RFI suppression in electronic equipment. The RN series offers various inductance and current ratings to suit different power line filtering needs across industrial and consumer electronics.

Replacement Considerations

Check for direct substitutes within the RN series with matching 4.4 mH inductance and 0.6 A rating. Verify pinout compatibility and physical footprint dimensions to ensure seamless replacement without PCB redesign.
