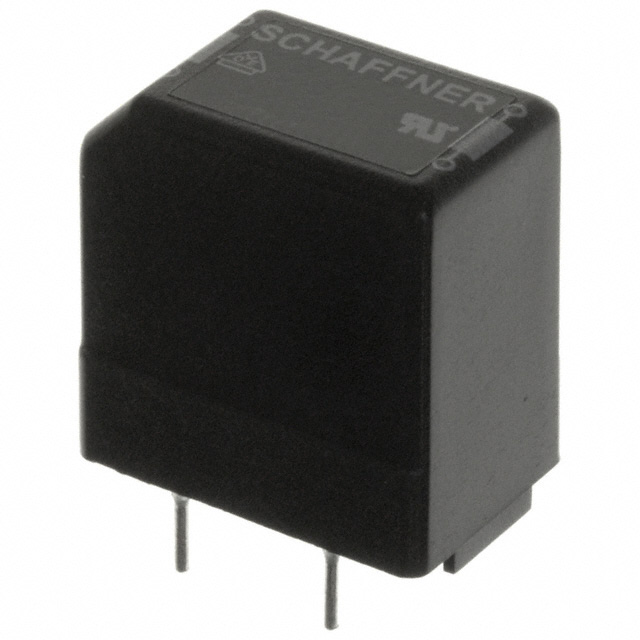

RN216-1.3-02-6M8

$1.92

Description：CMC 6.8MH 1.3A 2LN TH
Series：RN
Mfr：Schaffner EMC Inc.
Package：Tube

SKU:5b1e60f8abcb Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 6.8MH 1.3A 2LN TH
Series：RN
Mfr：Schaffner EMC Inc.
Package：Tube
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.3A
DC Resistance (DCR) (Max)：140mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：300V
Operating Temperature：-40°C ~ 100°C
Ratings：-
Approval Agency：ENEC, UR, VDE
Features：-
Mounting Type：Through Hole
Size / Dimension：0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max)：0.996" (25.30mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：6.8 mH @ 10 kHz
Qualification：-
Grade：-

Download product information

RN216-1.3-02-6M8

Overview

The RN216-1.3-02-6M8 is a common mode choke manufactured by Schaffner EMC Inc., designed for PCB mounting via through-hole termination. It features a single channel configuration with a nominal inductance of 6.8 mH, tested at 10 kHz. The component supports a maximum DC current rating of 1.3 A and exhibits a maximum DC resistance of 74 mOhms. It operates within a temperature range of -40°C to +100°C and utilizes ferrite core material. The unit is unshielded and measures 18 mm x 12.5 mm x 20 mm.

Feature Summary

Provides common mode noise suppression for electromagnetic interference mitigation
Utilizes a vertical through-hole mounting style for direct PCB integration
Constructed with ferrite core material for stable magnetic performance

Applications

Power supply input filtering
Electromagnetic compatibility (EMC) circuits
RFI suppression in electronic equipment

Procurement Notes

Verify the manufacturer part number against official Schaffner documentation to ensure authenticity. Confirm that the specific suffix matches the required electrical parameters, particularly the 6.8 mH inductance and 1.3 A current rating. Check RoHS compliance status directly from the datasheet before procurement.

Selection Notes

Select this component when a single-channel common mode choke is required for low-current applications up to 1.3 A. Ensure the PCB layout accommodates the vertical form factor and through-hole pins. Verify that the 6.8 mH inductance value aligns with the target frequency spectrum for noise attenuation in the specific circuit design.

Part Context

This component belongs to the RN series of common mode chokes produced by Schaffner EMC Inc. The series offers various inductance and current ratings tailored for different power line filtering requirements. The RN216 variant specifically targets applications requiring robust EMI reduction in compact PCB-mounted designs.
