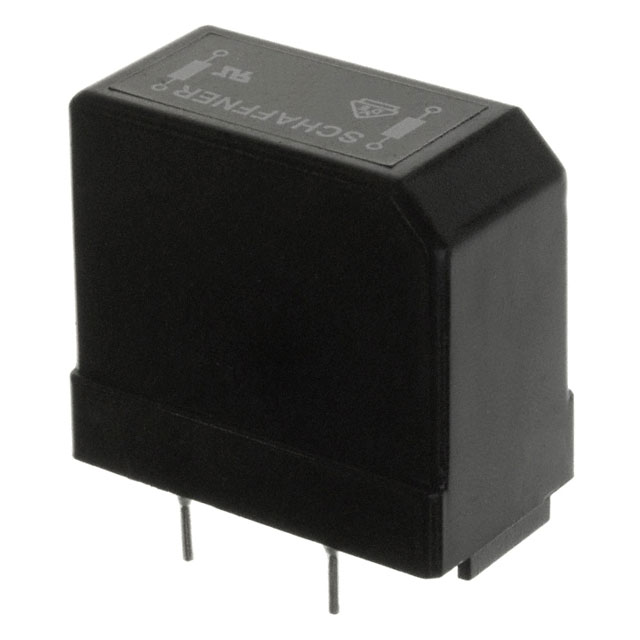

RN222-2.5-02

Description：CMC 5.6MH 2.5A 2LN TH
Series：RN
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:06d6a42bb440 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 5.6MH 2.5A 2LN TH
Series：RN
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2.5A (Typ)
DC Resistance (DCR) (Max)：105mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：UR, VDE
Features：-
Mounting Type：Through Hole
Size / Dimension：1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Max)：1.165" (29.60mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：5.6 mH @ 1 kHz
Qualification：-
Grade：-

Download product information

RN222-2.5-02

Overview

The Schaffner RN222-2.5-02 is a two-line common mode choke designed for through-hole PCB mounting. It features an inductance of 5.6 mH at 1 kHz and supports a typical current rating of 2.5 A. The component has a maximum DC resistance of 105 mOhm and operates within a temperature range of -40°C to 125°C. Rated for 250 V AC, this vertical choke provides effective electromagnetic interference suppression in power circuits.

Feature Summary

Provides common mode noise filtering for two-line power applications
Supports high thermal stability with operation up to 125°C
Designed for efficient power conversion and voltage regulation

Applications

Power supplies
Battery chargers
Portable devices
Energy-efficient systems

Procurement Notes

Verify the specific part number against official TE Connectivity or Schaffner documentation to confirm electrical parameters such as inductance and current ratings. Ensure compatibility with your circuit's voltage and thermal requirements before procurement.

Selection Notes

Select this component when a 5.6 mH inductance and 2.5 A current handling are required for common mode noise reduction. Consider the through-hole package and 125°C operating temperature limit for your design constraints.

Part Context

This component belongs to the RN222 series of common mode chokes from Schaffner EMC Inc., now part of TE Connectivity. These components are engineered for general-purpose EMI suppression in electronic equipment requiring reliable performance under varying thermal conditions.

Replacement Considerations

Consult official substitution guides for equivalent inductance and current ratings. Verify pinout and physical dimensions match your PCB layout before replacing.
