Product Detailed Parameters
- Description：COMMON MODE CHOKE 5.6MH 2.5A
- Series：RN
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：-
- Number of Lines：-
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：-
- Size / Dimension：-
- Height (Max)：-
- Package / Case：-
- Inductance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

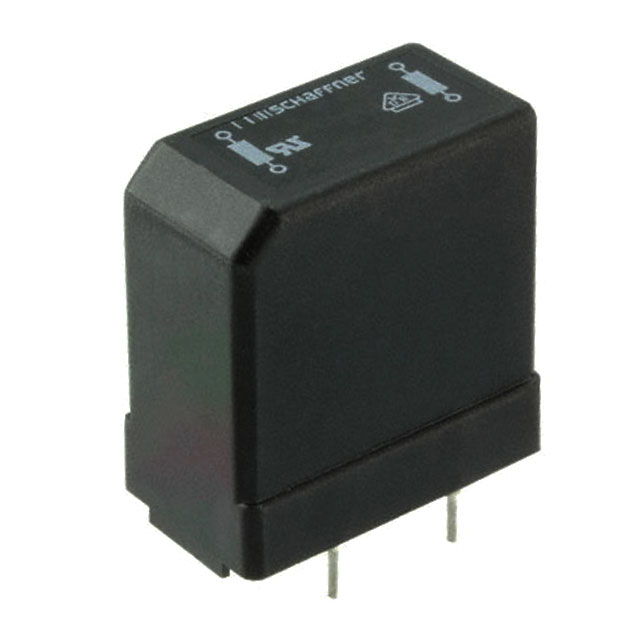

The Schaffner RN232-2.5-02 is a vertical common mode choke designed for electromagnetic interference suppression. It features a nominal inductance of 5.6 mH and supports a continuous current rating of 2.5 A. The component utilizes horizontal mounting orientation options within its series design but is specified here as a vertical unit. It serves as a differential mode choke with 30 uH inductance and 2 A current capacity in related configurations, though the specific part number denotes the 5.6 mH / 2.5 A variant. This filter element is engineered for integration into power conversion circuits to ensure voltage regulation stability.
Feature Summary
- Provides common mode noise suppression for power lines
- Supports efficient power conversion and voltage regulation
- Designed for compact integration in portable devices
Applications
- Power supply units
- Battery chargers
- Portable electronic devices
Procurement Notes
Verify the exact inductance value (5.6 mH) and current rating (2.5 A) against the specific application requirements. Confirm the physical mounting style matches the PCB layout constraints. Ensure compatibility with the operating temperature range defined in the official datasheet. Cross-reference the manufacturer's latest documentation to confirm component revisions and material compliance status before finalizing procurement orders.
Selection Notes
Select this component when a 5.6 mH common mode choke with a 2.5 A rating is required for vertical mounting applications. Consider the physical dimensions and terminal configuration to ensure fit within the enclosure. Evaluate the saturation characteristics relative to the peak current loads in the circuit. Compare attenuation performance against alternative inductors if specific EMI standards must be met at higher frequencies.
Part Context
This component belongs to the RN232 series of common mode chokes manufactured by Schaffner EMC Inc. The series offers various inductance and current combinations to suit different power line filtering needs. Related parts include the RN232-1.6-02 and RN232-4-02, which provide different electrical specifications while maintaining similar form factors and mounting styles for consistent design integration across product lines.
Replacement Considerations
Direct substitutes are not explicitly confirmed in public data. Equivalent components must match the 5.6 mH inductance, 2.5 A current rating, and vertical mounting orientation. Verify that any replacement maintains identical footprint dimensions and terminal types to ensure mechanical compatibility without redesigning the printed circuit board assembly.
