RNF12DBC10K0

Overview

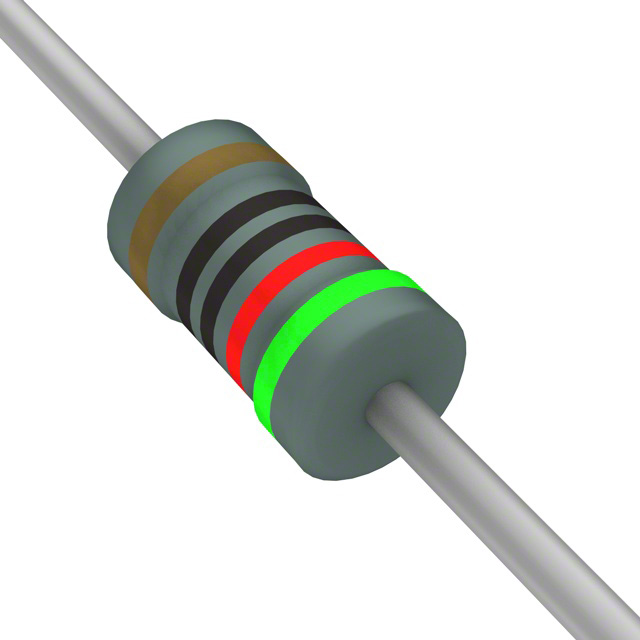

The RNF12DBC10K0 is a through-hole metal film resistor manufactured by Stackpole Electronics Inc. It features an axial package with a resistance value of 10 kOhms and a tolerance of ±0.5%. The component is rated for 0.5W (1/2W) power dissipation and operates within a temperature range of -55°C to +155°C. It has a temperature coefficient of ±50 ppm/°C and includes a flame-retardant coating.

Feature Summary

• Constructed with metal film composition for stable performance
• Features a flame-retardant safety coating
• Designed for axial through-hole mounting

Applications

• General purpose electronic circuits
• Industrial control systems
• Consumer electronics assemblies

Procurement Notes

Verify the specific suffix codes against official datasheets to ensure correct tolerance and packaging configuration. Confirm RoHS compliance status and environmental declarations prior to integration. Cross-reference manufacturer part numbers with distributor listings to validate authenticity and current production status.

Selection Notes

Select this component when a 10 kOhm resistance with ±0.5% precision is required in a 1/2W axial form factor. Consider the ±50 ppm/°C temperature coefficient for thermal stability needs. Ensure the operating environment stays within the specified -55°C to +155°C range for reliable operation.

Part Context

This resistor belongs to the RNF series from Stackpole Electronics, which focuses on general-purpose metal film resistors. The series offers various resistance values and tolerances in axial packages suitable for standard PCB mounting techniques.

Replacement Considerations

RNMF12FTD10K0 is a documented substitute option.
