RNF12JBD2K70

Overview

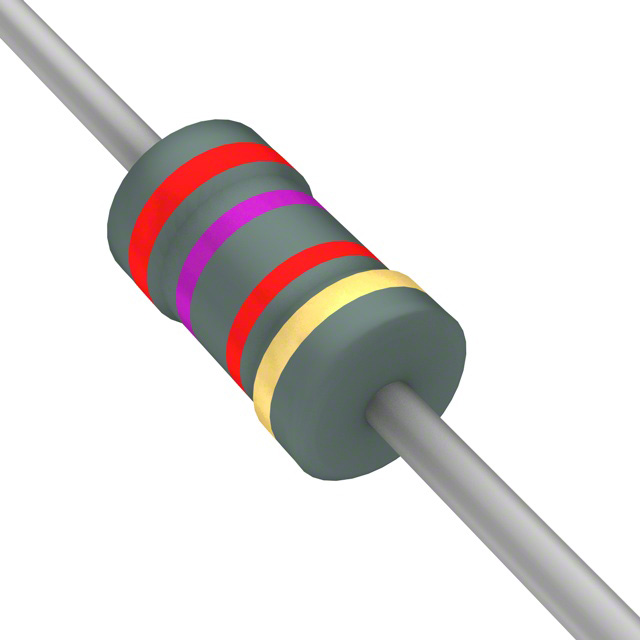

The RNF12JBD2K70 is a metal film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 2.7 kOhms with a tolerance of ±5%. The component has a power rating of 0.5W (1/2W) and operates within a temperature range of -55°C to +155°C. It exhibits a temperature coefficient of 100 ppm/°C and includes flame retardant coating for safety compliance.

Feature Summary

• Safety metal film construction with flame retardant coating
• Axial leaded package suitable for PCB mounting
• Wide operating temperature range capability

Applications

• General purpose electronic circuits
• Industrial control systems
• Consumer electronics assemblies

Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm tolerance and coating specifications. Ensure compatibility with automated insertion equipment if used in high-volume production lines. Confirm RoHS compliance status via official datasheets prior to final procurement decisions.

Selection Notes

Select this component when a 2.7 kOhm resistance value is required in a 1/2W axial form factor. Consider the ±5% tolerance and 100 ppm/°C temperature coefficient for circuit stability requirements. Verify physical dimensions fit the target PCB layout constraints.

Part Context

This part belongs to the RNF series of metal film resistors from Stackpole Electronics. The series is characterized by safety certifications and flame retardant properties, distinguishing it from standard general-purpose resistors in terms of fire safety standards.

Replacement Considerations

Cross-reference with other manufacturers offering 2.7 kOhm, 1/2W, ±5% axial metal film resistors. Ensure equivalent temperature coefficients and voltage ratings are met. Verify mechanical footprint compatibility before substitution.
