RNF14BBD60K4

Overview

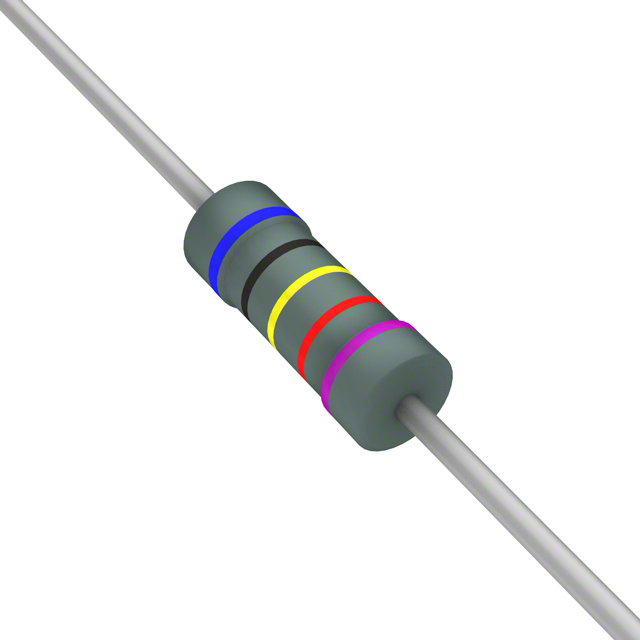

The RNF14BBD60K4 is a metal film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a nominal resistance of 60.4 kOhms with a tight tolerance of ±0.1%. The component is rated for 0.25W (1/4W) power dissipation and operates within a temperature range of -55°C to +155°C. It has a temperature coefficient of ±100ppm/°C and measures 0.093 inches in diameter by 0.250 inches in length. The device includes flame retardant safety coating and complies with RoHS3 standards.

Feature Summary

• Metal film construction ensures stable electrical performance and precision.
• Flame retardant safety coating enhances operational safety in circuit applications.
• Axial leaded package facilitates standard through-hole mounting techniques.

Applications

• Precision analog signal conditioning circuits
• High-accuracy measurement instrumentation
• Medical electronic equipment requiring reliable passive components

Procurement Notes

Verify the specific suffix 'BD' against official Stackpole documentation to confirm the exact tolerance and temperature coefficient specifications, as ordering codes can vary. Confirm RoHS3 compliance status directly with the manufacturer or authorized distributor before finalizing procurement decisions for regulated environments.

Selection Notes

Select this component when high precision (±0.1%) and low noise are required in space-constrained axial packages. Ensure the 0.25W power rating aligns with the circuit's thermal design. Consider the ±100ppm/°C temperature coefficient for stability across the specified operating temperature range.

Part Context

This part belongs to the RNF series of precision metal film resistors from Stackpole Electronics. The series is designed for general-purpose electronic applications requiring higher accuracy than standard carbon composition resistors. The axial form factor allows for easy integration into traditional printed circuit board layouts.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with alternative manufacturers based on matching resistance, tolerance, power rating, and physical dimensions.
