RNF14BBD6K81

Overview

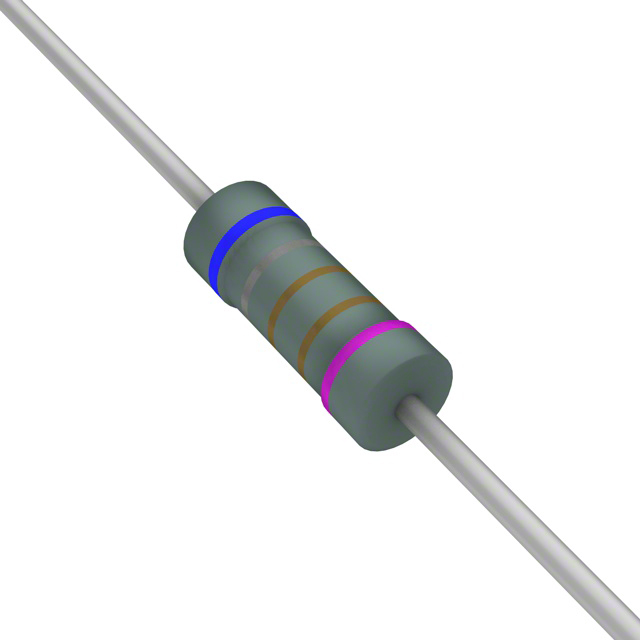

The RNF14BBD6K81 is a fixed metal film axial leaded resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 6.81 kOhms with a tolerance of ±0.1%. The component has a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to +155°C. It utilizes a tubular package with dimensions of 0.093 inches in diameter and 0.250 inches in length. The device includes flame-retardant coating for safety compliance.

Feature Summary

• Constructed using precision metal film technology for stable electrical performance
• Features standard flame-retardant coating for enhanced safety
• Designed for through-hole mounting with axial leads

Applications

• General purpose electronic circuits
• Precision analog signal conditioning
• Industrial control systems

Procurement Notes

Verify the specific suffix code against official datasheets to confirm tolerance and temperature coefficient, as variations exist within the RNF series. Confirm RoHS compliance status and packaging type directly with the manufacturer or authorized distributors before ordering.

Selection Notes

Select this component when high precision (±0.1%) is required in a standard 1/4W axial form factor. Ensure the operating environment stays within the specified -55°C to +155°C range. Consider thermal derating if ambient temperatures approach the upper limit.

Part Context

This part belongs to the RNF series of general-purpose metal film resistors from Stackpole Electronics. The series offers various resistance values and tolerances, balancing cost-effectiveness with reliable performance for commercial and industrial applications.

Replacement Considerations

Check for direct equivalents such as RNMF series variants or other manufacturers' 1/4W axial metal film resistors with matching 6.81kΩ resistance and ±0.1% tolerance. Verify physical dimensions and lead compatibility.
