RNF14BBE249K

Overview

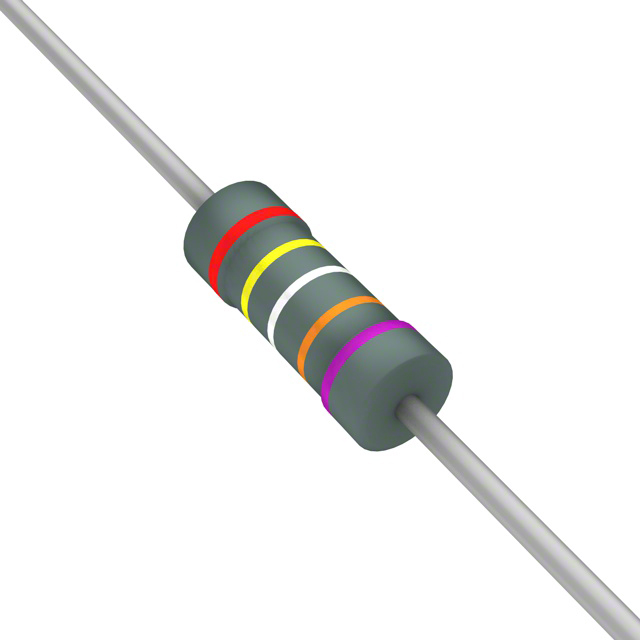

The RNF14BBE249K is a precision metal film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 249 kOhms with a tolerance of ±0.1%. The component has a power rating of 0.25W (1/4W) and a temperature coefficient of ±25ppm/°C. It operates within a temperature range of -55°C to +155°C. The physical dimensions are 0.093 inches in diameter by 0.250 inches in length (2.35mm x 6.35mm). It includes standard flame-retardant coating and complies with RoHS3 regulations.

Feature Summary

• Precision metal film construction for superior electrical stability
• Standard flame-retardant coating for safety compliance
• Designed for high-reliability general-purpose applications

Applications

• Precision analog signal conditioning circuits
• High-accuracy measurement instrumentation
• Medical device electronics requiring stable resistance values

Procurement Notes

Verify the specific suffix 'BE' against official datasheets to confirm the exact tolerance and temperature coefficient, as variations exist within the RNF series. Ensure the required packaging format matches available distributor stock options. Confirm lead times directly with authorized suppliers due to potential manufacturing delays.

Selection Notes

Select this component when tight tolerance and low temperature drift are critical. Compare against the RNMF series if space constraints require a smaller footprint. Verify that the 250V working voltage rating meets the circuit requirements. Consider alternative packaging if bulk quantities are needed versus tape and reel.

Part Context

This part belongs to the RNF/RNMF series of general-purpose metal film resistors from Stackpole Electronics. The series is known for replacing older carbon composition types with more stable thin-film alternatives. It is designed for environments requiring long-term stability and precise resistance values without the cost of specialized military-grade components.

Replacement Considerations

RNF14BAE249K

FAQ

What is the temperature coefficient of the RNF14BBE249K?

The temperature coefficient is ±25ppm/°C.

Does this resistor have a flame-retardant coating?

Yes, flame-retardant coatings are standard for this series.
