RNF14FBD14K3

Overview

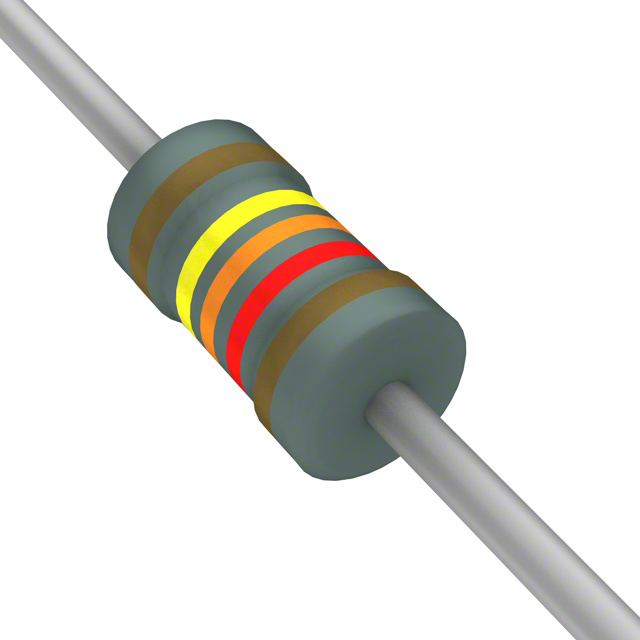

The RNF14FBD14K3 is a fixed metal film resistor manufactured by Stackpole Electronics Inc. It features an axial through-hole package with a resistance value of 14.3 kOhms and a tolerance of ±0.1%. The component has a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to +155°C. It exhibits a temperature coefficient of ±100ppm/°C and includes standard flame-retardant coating.

Feature Summary

• Precision metal film construction for superior electrical stability
• Standard flame-retardant coating for safety compliance
• Axial leaded design suitable for through-hole PCB mounting

Applications

• General purpose electronic circuits
• Precision analog signal conditioning
• Industrial control systems

Procurement Notes

Verify the specific suffix 'BD' against official Stackpole documentation to confirm the exact tolerance and temperature coefficient, as variations exist within the RNF series. Ensure the requested packaging matches the required manufacturing process, such as bulk or tape and reel, before finalizing orders.

Selection Notes

Select this component when high precision (±0.1%) is required in a standard 1/4W axial form factor. Consider the ±100ppm/°C temperature coefficient for thermal stability requirements. Verify that the physical dimensions fit the available board space compared to the mini RNMF series if size is a constraint.

Part Context

This part belongs to the RNF series of general-purpose metal film resistors from Stackpole Electronics. The series is characterized by its reliability and compliance with RoHS and REACH regulations. The RNF line serves as a standard replacement for older carbon composition types in modern electronics manufacturing.

Replacement Considerations

RNF14BTD14K3

FAQ

What is the temperature coefficient of the RNF14FBD14K3?

The temperature coefficient is ±100ppm/°C.

Is the RNF14FBD14K3 compliant with environmental standards?

Yes, it is RoHS compliant and lead-free without exemption.
