RNF14FBD2K94

Overview

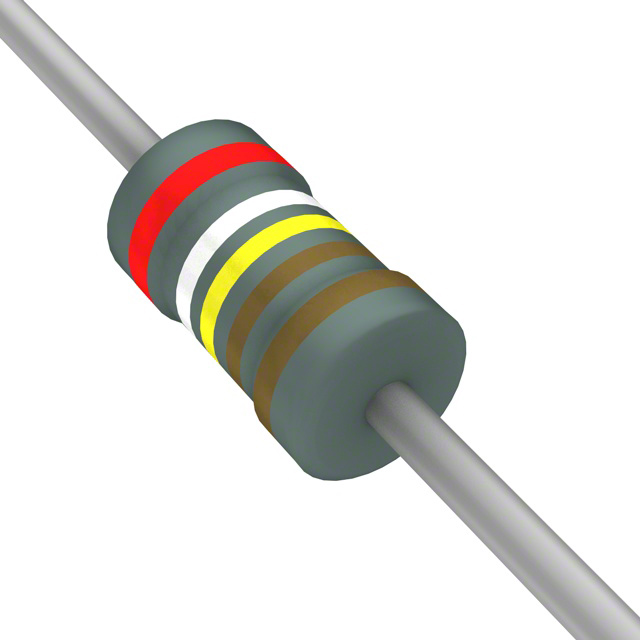

The RNF14FBD2K94 is a fixed metal film resistor manufactured by Stackpole Electronics Inc. It features an axial through-hole package with a resistance value of 2.94 kOhms and a tolerance of ±0.1%. The component has a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to +155°C. It includes standard flame-retardant coating and complies with RoHS3 regulations.

Feature Summary

• Precision metal film construction for superior electrical stability
• Standard flame-retardant coating for enhanced safety
• RoHS3 compliant and lead-free composition

Applications

• Precision analog signal conditioning circuits
• High-accuracy measurement instrumentation
• Medical device electronics requiring stable resistance

Procurement Notes

Verify the specific suffix 'BD' against official Stackpole documentation to confirm the ±0.1% tolerance designation, as generic series data may list different tolerances. Ensure the axial leaded form factor matches the target PCB layout requirements before finalizing procurement decisions.

Selection Notes

Select this component when circuit design demands tight resistance tolerance in a standard axial package. The 0.25W power rating suits general-purpose applications where space allows for through-hole mounting. Verify thermal derating curves if operation exceeds ambient temperatures near the upper limit.

Part Context

This part belongs to the RNF series of general-purpose metal film resistors from Stackpole Electronics. The series offers various tolerance options, with the 'B' code typically indicating precision grades. It serves as a reliable alternative to carbon composition types in modern electronic assemblies.

Replacement Considerations

RNF14FTD2K94 is listed as a parameter equivalent in public databases.
