RNF14FBD32R4

Overview

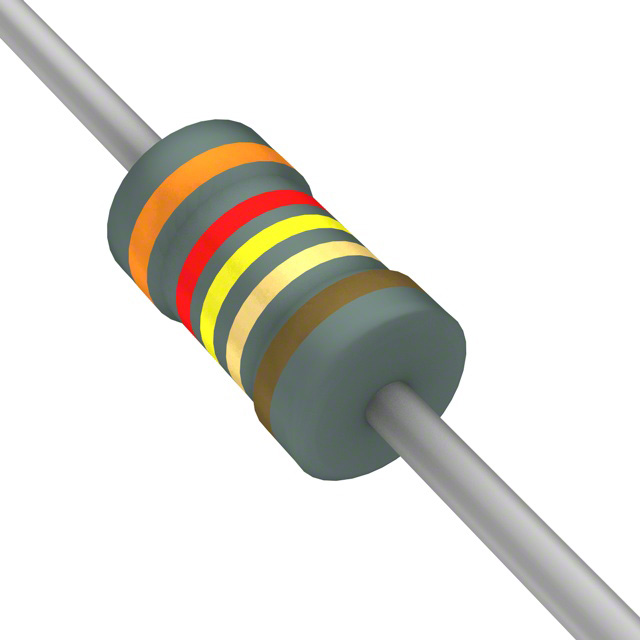

The RNF14FBD32R4 is a fixed metal film resistor manufactured by Stackpole Electronics Inc. It features an axial through-hole package with dimensions of 0.093 inches in diameter and 0.250 inches in length (2.35mm x 6.35mm). The component has a resistance value of 32.4 ohms with a tolerance of ±1%. It is rated for 0.25 watts (1/4W) power dissipation and operates within a temperature range of -55°C to +155°C. The temperature coefficient is ±100ppm/°C, and it carries a maximum working voltage of 250Vrms.

Feature Summary

• Precision metal film construction ensures superior electrical stability and low noise performance.
• Standard flame-retardant coating provides safety compliance and fire resistance.
• Axial leaded design facilitates easy insertion and mounting on printed circuit boards.

Applications

• General purpose electronic circuits
• Industrial control systems
• Consumer electronics assemblies

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm tolerance and packaging details. Ensure compatibility with automated assembly processes if Panasert availability is required. Confirm RoHS3 compliance status for current regulatory requirements before finalizing procurement orders.

Selection Notes

Select this component for applications requiring standard precision resistance values in axial packages. Consider the ±1% tolerance and 100ppm/°C TCR for general signal conditioning. Evaluate thermal management needs given the 0.25W rating and operating temperature limits.

Part Context

This part belongs to the RNF series of general-purpose metal film resistors from Stackpole Electronics. The series is designed for reliable performance in various electronic applications. The RNF designation indicates a standard axial form factor with metal film technology, distinct from the miniaturized RNMF series.

Replacement Considerations

• RNF14FTD32R4
