RNF14FBD3K74

Overview

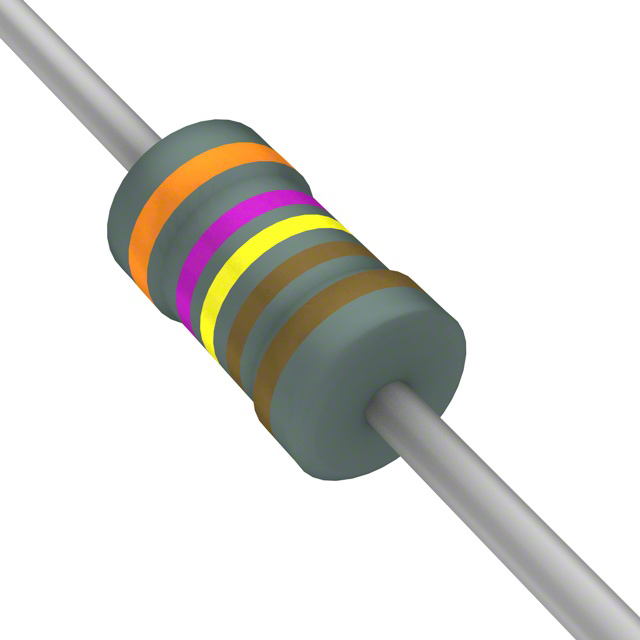

The RNF14FBD3K74 is a fixed metal film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 3.74 kOhms with a tolerance of ±0.1%. The component has a power rating of 0.25W (1/4W) and a temperature coefficient of ±25ppm/°C. It operates within a temperature range of -55°C to +155°C, has a maximum working voltage of 250V, and measures 2.35mm in diameter by 6.35mm in length.

Feature Summary

• Precision metal film construction for superior electrical stability
• Flame-retardant coating standard for safety compliance
• Low temperature coefficient for consistent performance under thermal variation

Applications

• General purpose precision circuits
• High-accuracy signal conditioning
• Test and measurement equipment

Procurement Notes

Verify the specific suffix code against official datasheets to confirm tolerance and TCR specifications. Ensure the ordering part number matches the required ±0.1% tolerance and ±25ppm/°C coefficient. Confirm RoHS compliance status and packaging type requirements prior to purchase.

Selection Notes

Select this component when high precision and low drift are critical. The ±0.1% tolerance and ±25ppm/°C TCR distinguish it from standard 1% variants. Verify that the 250V working voltage meets circuit requirements and that the axial package fits the PCB layout constraints.

Part Context

This resistor belongs to the RNF series of general-purpose metal film resistors. The series offers various tolerance and TCR combinations. The RNF14 designation indicates a 1/4W power rating in an axial leaded package suitable for through-hole mounting technologies.

Replacement Considerations

RNF14FAD3K74

FAQ

What is the temperature coefficient of the RNF14FBD3K74?

The temperature coefficient is ±25ppm/°C.

Is the RNF14FBD3K74 RoHS compliant?

Yes, the RNF series is 100% RoHS compliant and lead-free without exemption.
