RNF14FBD90R9

Overview

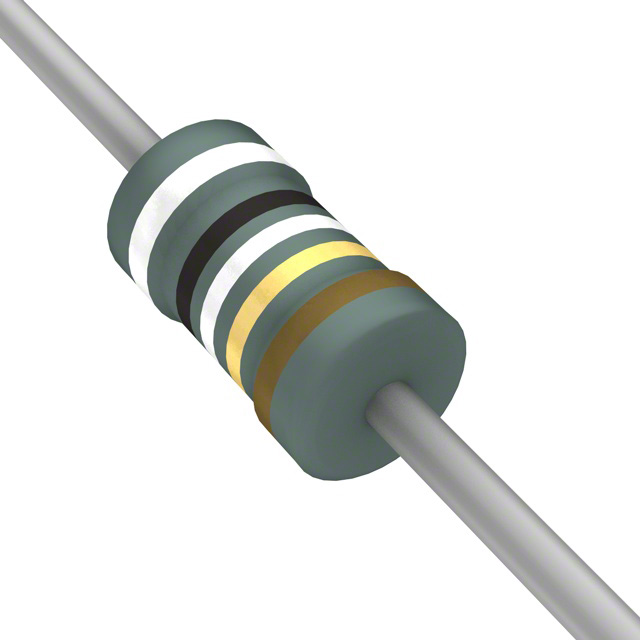

The RNF14FBD90R9 is a fixed metal film resistor manufactured by Stackpole Electronics Inc. It features an axial through-hole package with dimensions of 2.35mm diameter and 6.35mm length. The component has a resistance value of 90.9 ohms, a power rating of 0.25W (1/4W), and a tolerance of ±1%. It operates within a temperature range of -55°C to +155°C and exhibits a temperature coefficient of resistance (TCR) of ±50ppm/°C. The maximum working voltage is 250Vrms.

Feature Summary

• Precision metal film construction for superior electrical stability
• Standard flame-retardant coating for enhanced safety
• RoHS compliant and lead-free composition

Applications

• General purpose electronic circuits
• Precision analog signal conditioning
• Industrial control systems

Procurement Notes

Verify the specific suffix against official Stackpole documentation to confirm tolerance and TCR ratings. Ensure the ordering code matches the required packaging format, such as bulk or tape and reel, as availability varies by configuration. Cross-reference the manufacturer part number with authorized distributor databases to confirm current production status and compliance certifications.

Selection Notes

Select this component when a standard 1/4W axial resistor with 1% tolerance and 50ppm/°C stability is required. The RNF series offers a reliable alternative to older MP series resistors. Consider the RNMF variant if space constraints necessitate a smaller physical footprint while maintaining similar electrical characteristics.

Part Context

This resistor belongs to the RNF/RNMF series of general-purpose metal film resistors from Stackpole Electronics. The series is characterized by high precision and stability, utilizing a tubular construction with flame-retardant coatings. These components are designed for broad industrial and commercial applications requiring reliable performance across wide temperature ranges.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific model were not identified in the provided source material.
