RNF14JBD10M0

Overview

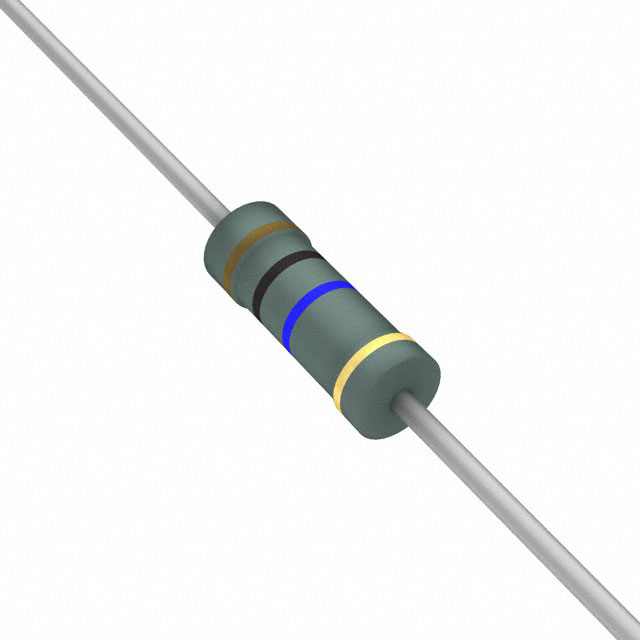

The RNF14JBD10M0 is a precision metal film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a nominal resistance of 10 ohms with a tolerance of ±0.1%. The component has a power rating of 0.25 watts (1/4 W) and operates within a temperature range of -55°C to +155°C. It utilizes a flame-retardant coating for safety compliance and meets RoHS3 standards. The physical dimensions are 2.35 mm in diameter and 6.35 mm in length, designed for standard PCB mounting applications requiring high stability.

Feature Summary

• Precision metal film construction ensures superior electrical stability and low noise performance
• Flame-retardant coating provides enhanced safety and fire resistance during operation
• Wide operating temperature range supports reliability in extreme environmental conditions
• RoHS3 compliant lead-free composition meets international environmental regulations

Applications

• High-precision analog signal conditioning circuits
• Medical instrumentation measurement bridges
• Industrial control system feedback loops
• Calibration reference resistors in test equipment

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact tolerance and packaging specifications. Ensure the requested quantity aligns with the minimum order requirements defined by the distributor or manufacturer. Confirm that the flame-retardant coating specification matches the safety standards required for the target application environment before finalizing the purchase order.

Selection Notes

Select this component when circuit design requires tight resistance tolerance and stable thermal performance under continuous load. The axial package facilitates easy insertion into prototyping boards or automated assembly lines. Consider the voltage rating limits relative to the maximum working voltage specified in the datasheet to ensure safe operation within the intended electrical parameters.

Part Context

This part belongs to the RNF series of general-purpose metal film resistors from Stackpole Electronics. The series is characterized by precision manufacturing processes that deliver consistent electrical characteristics across production batches. The RNF designation indicates a standard axial leaded form factor suitable for general electronic applications where reliability and accuracy are prioritized over cost minimization.

Replacement Considerations

• RNF14BAE10M0
• RNMF14BAE10M0

FAQ

What is the temperature coefficient of the RNF14JBD10M0?

The temperature coefficient is ±25 ppm/°C, ensuring minimal resistance change over the operating temperature range.

Is the RNF14JBD10M0 RoHS compliant?

Yes, the component is RoHS3 compliant and lead-free, meeting current environmental standards for electronic components.
