RNF14JBD150R

Overview

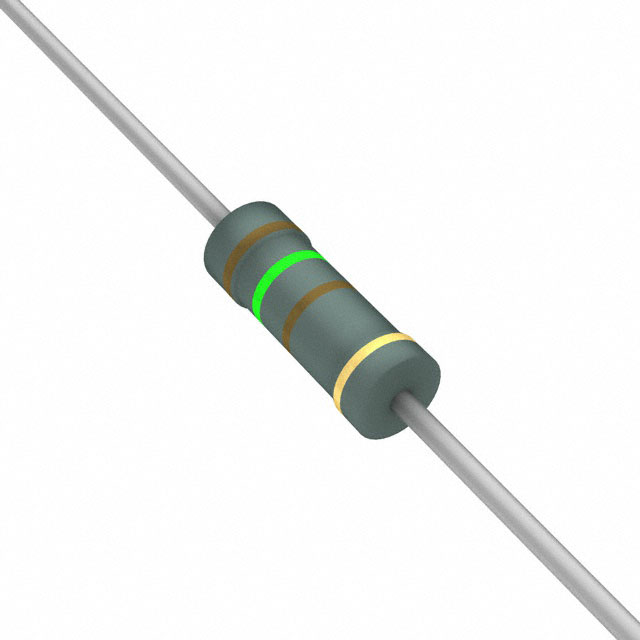

The RNF14JBD150R is a precision metal film axial resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 150 Ohms with a tolerance of ±5%. The component has a power rating of 250 mW (1/4 W) and operates within a temperature range of -55°C to +155°C. It exhibits a temperature coefficient of 100 ppm/°C and carries a voltage rating of 250 V. The device utilizes an axial leaded package suitable for PCB mounting.

Feature Summary

• Constructed using metal film technology for stable performance
• Designed as a precision resistor for accurate circuit applications
• Capable of operating in high-temperature environments up to 155°C

Applications

• General purpose electronic circuits
• Precision measurement equipment
• Industrial control systems

Procurement Notes

Verify the specific part number RNF14JBD150R against official Stackpole documentation to confirm availability and specifications. Ensure compliance with RoHS directives if required by your project standards. Cross-reference datasheets for exact dimensional tolerances and thermal characteristics before finalizing procurement decisions.

Selection Notes

Select this component when a 150 Ohm resistance with 5% tolerance is required in a compact axial form factor. Consider its 250 mW power rating and 250 V voltage limit during circuit design. The wide operating temperature range makes it suitable for demanding industrial or commercial environments where stability is critical.

Part Context

This resistor belongs to the RNF/RNMF series from SEI Stackpole, which specializes in metal film through-hole components. The series is characterized by precision manufacturing and reliability for general-purpose applications. The RNF14JBD150R variant specifically targets circuits requiring moderate power handling with precise resistance values in standard axial packaging.

Replacement Considerations

Consult manufacturer substitution guides for equivalent metal film axial resistors with matching 150 Ohm, 1/4 W, and ±5% specifications. Verify that alternative parts meet the same 100 ppm/°C temperature coefficient and 250 V voltage rating requirements.
