RNF14JBD1M80

Overview

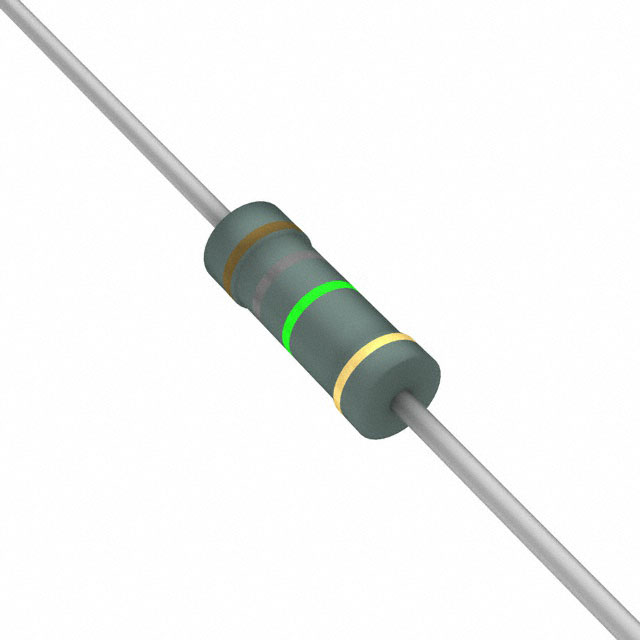

The RNF14JBD1M80 is an axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 1.8 Mohms with a tolerance of ±5%. The component has a power rating of 0.25W (1/4W) and utilizes metal film composition. It operates within a temperature range of -55°C to +155°C and has a temperature coefficient of ±200ppm/°C. The physical dimensions are 0.093 inches in diameter by 0.250 inches in length (2.35mm x 6.35mm).

Feature Summary

• Constructed with metal film composition for stable resistive performance.
• Features a flame-retardant coating designed for safety compliance.

Applications

• General-purpose electronic circuitry requiring high resistance values
• Industrial control systems operating within extended temperature ranges
• Consumer electronics utilizing standard axial leaded components

Procurement Notes

Verify the specific suffix 'BD' against official Stackpole documentation to confirm packaging configuration, as standard listings may default to bulk or tape-and-reel formats. Ensure the requested quantity aligns with the manufacturer's standard shipping units. Confirm RoHS3 compliance status at the time of order, as regulatory declarations can be subject to periodic updates. Cross-reference the full part number with distributor databases to ensure availability and accurate lead times.

Selection Notes

Select this component when a high resistance value of 1.8 Mohms is required in an axial form factor. The ±5% tolerance suits applications where precise precision is not critical. Consider the 0.25W power rating and ±200ppm/°C temperature coefficient for thermal stability requirements. Verify that the physical size fits the PCB layout constraints compared to smaller thin-film alternatives.

Part Context

This resistor belongs to the RNF series of axial metal film resistors from Stackpole Electronics. The series is characterized by its flame-retardant coating and wide operating temperature range. It serves as a general-purpose passive component suitable for various commercial and industrial applications requiring reliable resistance in an axial package format.

Replacement Considerations

Compatible substitutes include other 1.8 Mohm, 1/4W, ±5% axial metal film resistors from manufacturers such as Yageo or Vishay. Ensure replacement parts match the physical dimensions and temperature coefficient specifications to maintain circuit integrity and board fitment.
