RNF14JBD68K0

Overview

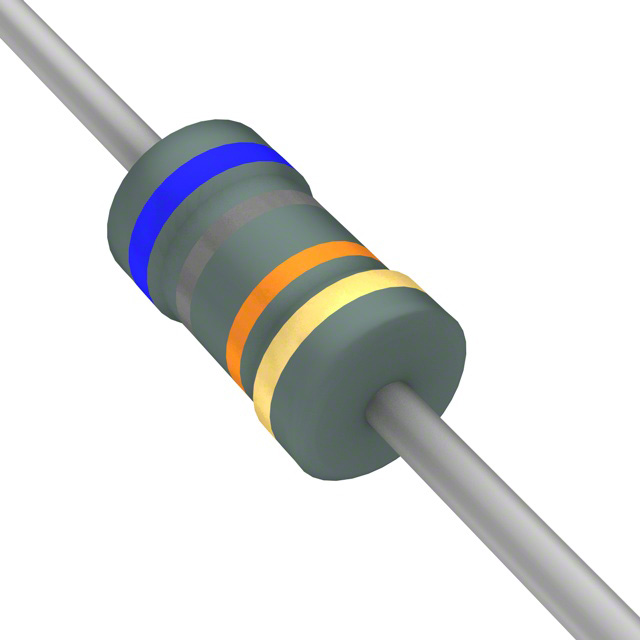

The RNF14JBD68K0 is a general-purpose metal film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 68 kOhms with a tolerance of ±5% and a power rating of 250 mW (1/4 W). The component operates within a temperature range of -55°C to +155°C and has a temperature coefficient of 100 ppm/°C. It utilizes flame-retardant safety coatings and is RoHS3 compliant.

Feature Summary

• Constructed using precision metal film technology for stable electrical performance
• Equipped with standard flame-retardant safety coatings
• Designed for general-purpose applications in electronic circuits

Applications

• General-purpose electronic circuit design
• Through-hole PCB mounting
• Industrial equipment signal conditioning

Procurement Notes

Verify the specific suffix codes against official Stackpole documentation to ensure correct tolerance and coating specifications. Confirm RoHS3 compliance status directly with the manufacturer or authorized distributors prior to procurement. Ensure packaging format requirements align with production needs.

Selection Notes

Select this component for applications requiring standard 1/4W axial resistors with moderate precision. Consider the 100 ppm/°C temperature coefficient for thermal stability requirements. Verify that the 68 kOhm value fits the circuit design constraints compared to other available series options.

Part Context

This part belongs to the RNF/RNMF series of fixed resistors from Stackpole Electronics. The series offers various resistance values and tolerances, utilizing metal film construction. The RNF14JBD68K0 specifically targets general-purpose markets with its 5% tolerance and robust physical construction.

Replacement Considerations

Cross-reference with other Stackpole RNF series parts for identical electrical parameters. Verify mechanical dimensions and lead compatibility when substituting with components from different manufacturers.
