RNF14JBD6K80

Overview

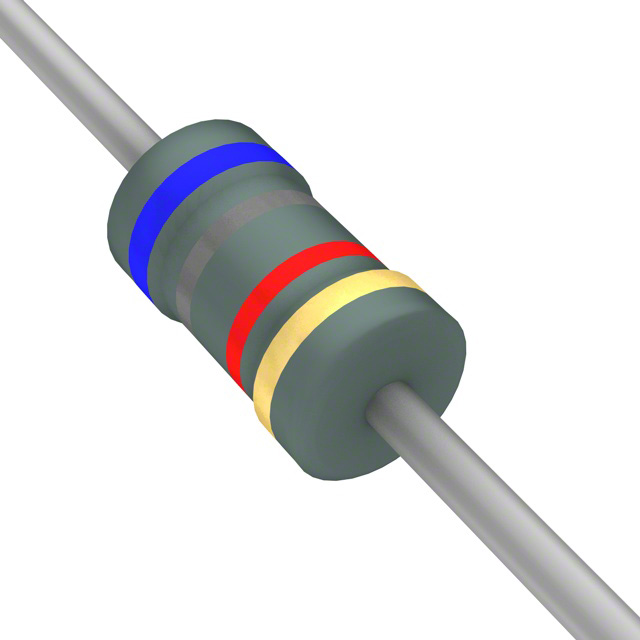

The RNF14JBD6K80 is a through-hole axial metal film resistor manufactured by Stackpole Electronics Inc. It features a nominal resistance of 6.8 kOhms with a tolerance of ±5%. The component has a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 0.093 inches in diameter by 0.250 inches in length (2.35mm x 6.35mm). The device includes a flame-retardant coating for safety compliance.

Feature Summary

• Constructed with metal film composition for stable electrical performance.
• Features a flame-retardant coating to enhance safety standards.
• Designed for general-purpose applications in electronic circuits.

Applications

• General purpose electronic circuitry
• Signal conditioning networks
• Voltage divider configurations

Procurement Notes

Verify the specific manufacturer part number against official Stackpole documentation to ensure authenticity. Confirm that the component meets required RoHS and REACH regulatory standards for your target market. Check datasheets for any recent packaging or specification changes before finalizing procurement orders.

Selection Notes

Select this component when a standard 6.8 kOhm resistance value is required with moderate precision. Ensure the application environment stays within the specified -55°C to +155°C operating temperature range. Verify that the 0.25W power rating is sufficient for the expected current load in the circuit design.

Part Context

This resistor belongs to the RNF series of axial leaded components from Stackpole Electronics. The series is characterized by metal film technology and flame-retardant coatings, suitable for general industrial and commercial electronics where reliable passive components are needed.

Replacement Considerations

CF14JB6K80 by Stackpole Electronics Inc is listed as a parameter equivalent alternative.
