RNF18DBC105K

Overview

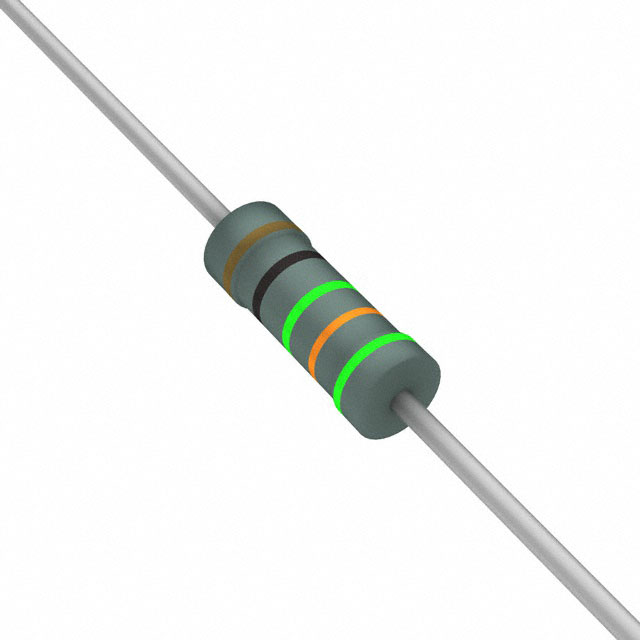

The RNF18DBC105K is a precision metal film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 105 kOhms with a tolerance of ±0.5%. The component has a power rating of 1/8W (0.125W) and operates within a temperature range of -55°C to +155°C. It exhibits a temperature coefficient of ±50 ppm/°C and includes flame-retardant safety coating.

Feature Summary

• Precision metal film construction for stable electrical performance
• Flame-retardant safety coating for enhanced operational security
• Wide operating temperature range suitable for demanding environments

Applications

• Precision measurement circuits
• Industrial control systems
• Test and measurement equipment

Procurement Notes

Verify the specific suffix DBC against official Stackpole documentation to confirm the exact tolerance and temperature coefficient parameters. Ensure the requested package matches the axial leaded configuration. Confirm RoHS compliance status directly with the manufacturer or authorized distributor prior to procurement.

Selection Notes

Select this component when high stability and low drift are required in space-constrained designs. The 1/8W power rating suits low-current applications. Verify that the ±50 ppm/°C temperature coefficient meets the circuit's accuracy requirements across the full operating temperature range.

Part Context

This part belongs to the RNF series of metal film resistors from Stackpole Electronics. It utilizes a cylindrical body design with welded terminations, providing reliable mechanical strength. The series is designed for general-purpose and precision applications requiring consistent performance over time.

Replacement Considerations

• RNMF14FTC105K

FAQ

What is the temperature coefficient of the RNF18DBC105K?

The temperature coefficient is ±50 ppm/°C.

Does this resistor have a flame-retardant coating?

Yes, the RNF18DBC105K features a flame-retardant safety coating.
