RNF18JBD130R

Overview

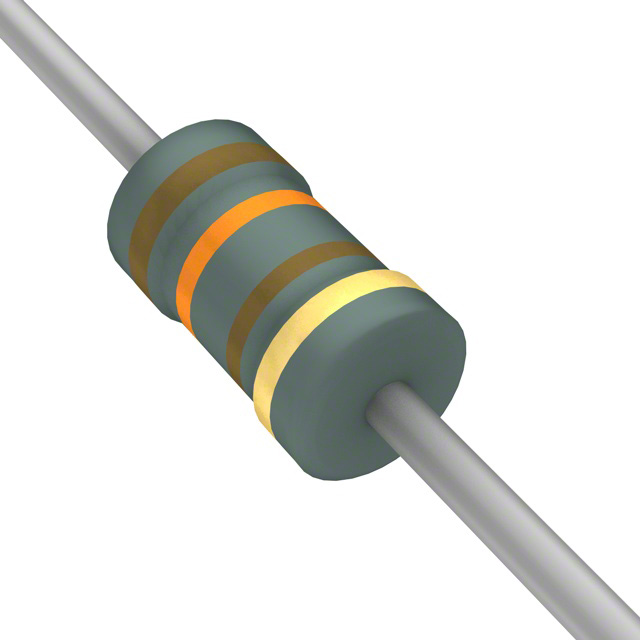

The RNF18JBD130R is a precision metal film axial leaded resistor manufactured by Stackpole Electronics Inc. It features a nominal resistance of 130 ohms with a tolerance of ±5%. The component has a power rating of 1/8 watt (125 mW) and operates within a temperature range of -55°C to +155°C. It exhibits a temperature coefficient of 100 ppm/°C and supports a maximum working voltage of 200 volts. Physical dimensions include a diameter of 1.8 mm and a length of 3.3 mm, suitable for through-hole PCB mounting.

Feature Summary

• Constructed using metal film technology for stable electrical performance
• Features a flame-retardant coating for enhanced safety
• Designed for general-purpose electronic applications

Applications

• General purpose circuitry
• PCB mounting applications
• Precision resistor circuits

Procurement Notes

Verify the specific suffix 'BD' against official datasheets to confirm bulk packaging status, as suffixes may indicate variations in tape-and-reel or tray configurations. Ensure compatibility with RoHS3 standards and check for any recent PCN updates regarding material changes or manufacturing site transfers before finalizing procurement orders.

Selection Notes

Select this component when a 130-ohm resistance value with 5% tolerance is required in low-power environments. Consider the 100 ppm/°C temperature coefficient for stability needs and verify that the 200V voltage rating exceeds the peak circuit voltage. Confirm physical space constraints match the 1.8mm x 3.3mm axial package dimensions.

Part Context

This part belongs to the RNF series of metal film resistors from Stackpole Electronics. The series is characterized by high reliability and precision, often utilized in demanding electronic environments. The RNF18 designation typically indicates a 1/8W power rating and specific axial body dimensions consistent with standard through-hole components.

Replacement Considerations

Direct substitutes within the same series include other values in the RNF18 line. Cross-manufacturer replacements must match the 1/8W power rating, 130 ohm resistance, ±5% tolerance, and 100 ppm/°C temperature coefficient while maintaining compatible axial dimensions.
