RNF18JBD15K0

Overview

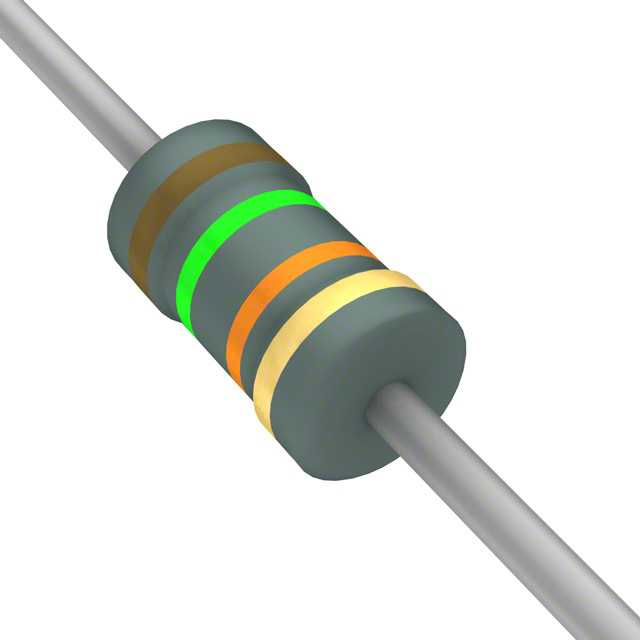

Stackpole Electronics Inc RNF18JBD15K0 is a through-hole metal film resistor with a nominal resistance of 15 kOhms and a tolerance of ±5%. It features a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to +155°C. The component utilizes an axial package with dimensions of 1.80mm diameter by 3.30mm length. It exhibits a temperature coefficient of ±100ppm/°C and carries a voltage rating of 200V. The device includes a flame-retardant safety coating and complies with RoHS3 standards.

Feature Summary

• Constructed from metal film material for stable electrical performance
• Features a flame-retardant safety coating for enhanced operational security
• Designed for general-purpose applications requiring reliable PCB mounting

Applications

• General purpose electronic circuits
• Precision resistor networks
• PCB mounted signal conditioning

Procurement Notes

Verify the specific suffix against official Stackpole documentation to confirm packaging type, as designations may indicate bulk or tape-and-reel formats. Confirm compliance requirements such as RoHS3 status directly with the manufacturer's current datasheet before finalizing procurement specifications.

Selection Notes

Select this component when a standard 15 kOhm resistance value with 5% tolerance is required in an axial form factor. Ensure the circuit environment remains within the specified -55°C to +155°C operating temperature range and does not exceed the 200V voltage rating or 0.125W power dissipation limits.

Part Context

The RNF18JBD15K0 belongs to the RNF series of precision metal film resistors manufactured by SEI Stackpole. This series is characterized by its axial leaded construction and flame-retardant coating, distinguishing it from surface mount alternatives. It serves as a fundamental passive component for general-purpose electronics.

Replacement Considerations

RNMF14FTD15K0
