RNF18JBD1K00

Overview

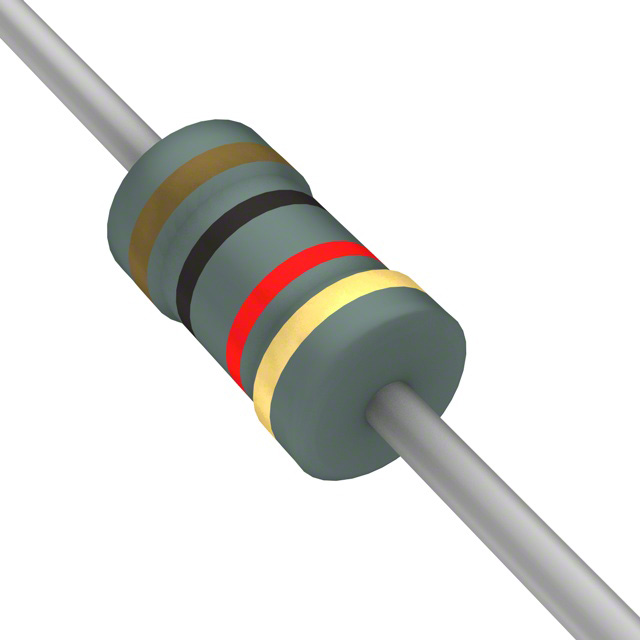

The RNF18JBD1K00 is a through-hole metal film resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 1 kOhms with a tolerance of ±5%. The component has a power rating of 125 mW (1/8 W) and operates within a temperature range of -55°C to +155°C. It utilizes an axial package with dimensions of 1.8 mm diameter by 3.3 mm length. The device carries a voltage rating of 200 V and exhibits a temperature coefficient of 100 ppm/°C.

Feature Summary

• Constructed using metal film technology for stable electrical performance
• Features flame-retardant coating for enhanced safety compliance
• Designed as a precision resistor suitable for general-purpose applications

Applications

• General purpose electronic circuits
• PCB mount installations
• Precision resistor networks

Procurement Notes

Verify the specific ordering suffix JBD against manufacturer documentation to confirm the exact tolerance, temperature coefficient, and termination specifications. Ensure compatibility with RoHS3 standards and check for any REACH restrictions relevant to your region before finalizing procurement decisions.

Selection Notes

Select this component when a 1 kOhm resistance with 5% tolerance is required in a compact 1/8 W axial form factor. Consider the 200 V voltage rating and 100 ppm/°C temperature coefficient for circuit stability. Verify that the 1.8 mm x 3.3 mm physical dimensions fit the designated PCB footprint and clearance requirements.

Part Context

This part belongs to the RNF/RNMF series of metal film resistors from Stackpole Electronics Inc. The series is characterized by its small axial package size and flame-retardant safety coating. It serves as a standard component for general-purpose electronics requiring reliable through-hole mounting solutions.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
